Transmission Bracket To Transmission Mount

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Hexagon-head bolts, M10 x 55 -B-

Location Description Type Basic value Tolerance 1 Tolerance 2
Transmission bracket to transmission mount Replace Initial tightening 50 Nm (37 ftlb.)
Transmission bracket to transmission mount   Final tightening 90°

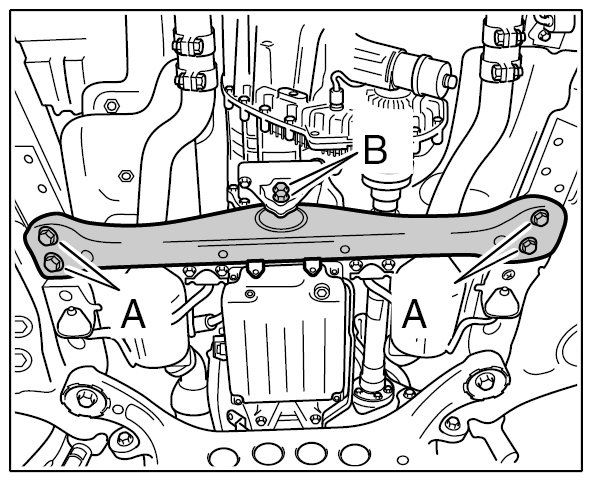

Fig 1: Attaching Threaded Joints On Transmission Cross Member
G09934288Courtesy of PORSCHE CARS NORTH AMERICA, INC.
