Assembly Overview - Clutch

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Clutch:

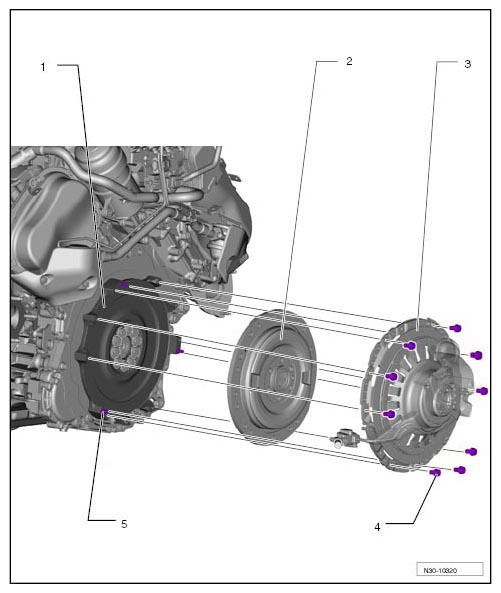

Fig 1: Overview Of Clutch Assembly
G09934278Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Flywheel
  2. Clutch plate - inscription on transmission side facing pressure plate, lightly grease notch toothing
  3. Pressure plate
  4. Screw → Initial tightening: 20 Nm (15 ftlb.) → Final tightening: +90° Replace
  5. Centering pins
