Assembly Overview - Clutch Actuation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Clutch actuation:

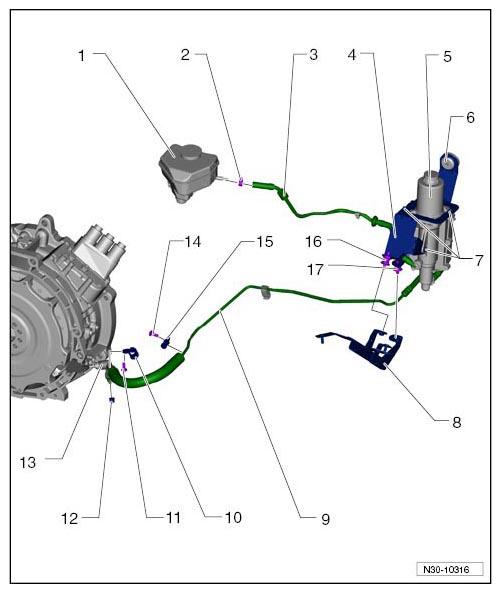

Fig 1: Overview Of Clutch Control Assembly

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake fluid reservoir
Spring band clamp
Return line
Holder
Actuator
Rubber mounting
Screw → Tightening torque: 10 Nm (7.5 ftlb.)
Holder to body → Tightening torque: 10 Nm (7.5 ftlb.)
Pressure line
Clip
Screw → Tightening torque: 10 Nm (7.5 ftlb.)
Dust boot for bleeder
Bleeder valve
Screw → Tightening torque: 10 Nm (7.5 ftlb.)
Clamp
Rubber mounting → Tightening torque: 10 Nm (7.5 ftlb.)
Rubber mounting → Tightening torque: 10 Nm (7.5 ftlb.)
