Assembly Overview - ATF Lines, ATF Preheater And ATF Cooler

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

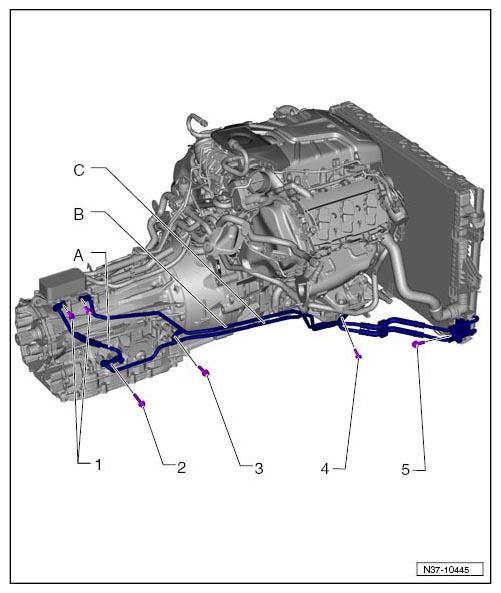

Fig 1: Overview Of ATF Lines Assembly
G09934283Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Screw → Tightening torque: 8 Nm (6 ftlb.)
  2. Screw → Tightening torque: 20 Nm (15 ftlb.)
  3. Screw → Tightening torque: 20 Nm (15 ftlb.)
  4. Screw → Tightening torque: 8 Nm (6 ftlb.)
  5. Screw → Tightening torque: 20 Nm (15 ftlb.)
  1. Coat ATF line/O-ring with ATF
  2. Coat ATF line/O-ring with ATF
  3. Coat ATF line/O-ring with ATF
