Removing Pump For Headlight Cleaning System

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Collect windscreen washer system fluid in a suitable container.

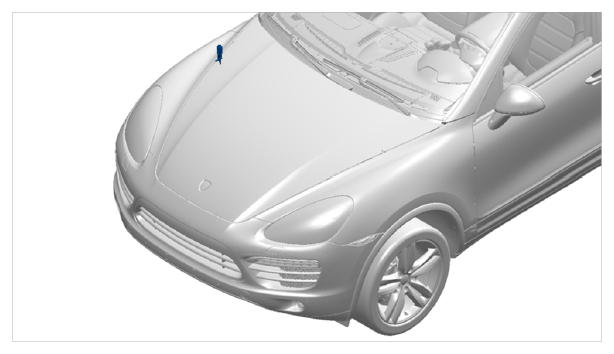

Fig 1: Identifying Installation Position Pump For Headlight Cleaning System

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclip electric line.
Release and pull off electric plug connection for fluid level sensor. → 926719 REMOVING AND INSTALLING FLUID LEVEL SENSOR
Pull off water hose for headlight cleaning system.

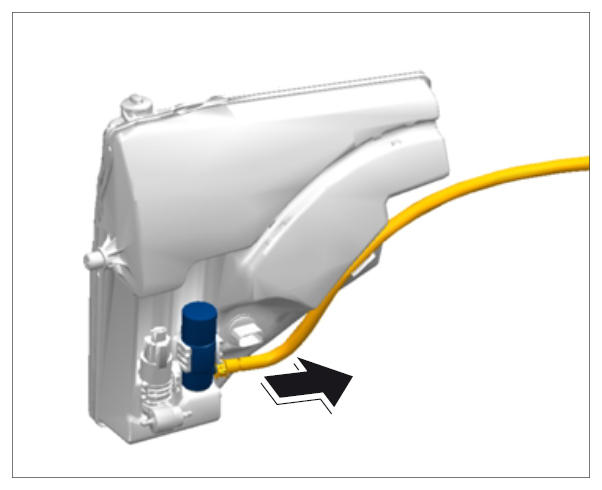

Fig 2: Pulling Off Water Hose For Headlight Cleaning System
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release and pull off electric plug connection.

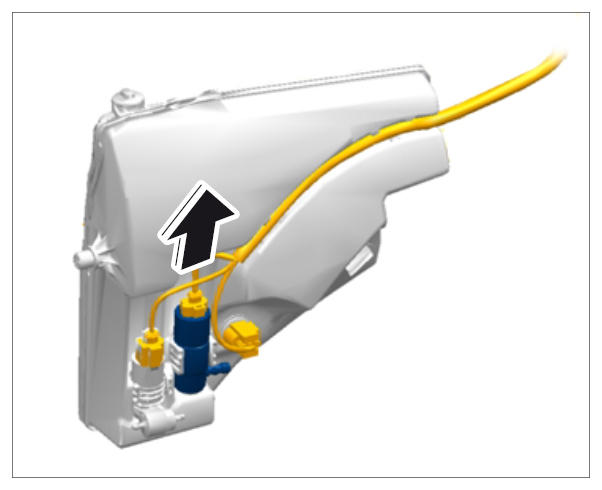

Fig 3: Pulling Off Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull the pump out of the rubber sleeve by turning it back and forward slightly.

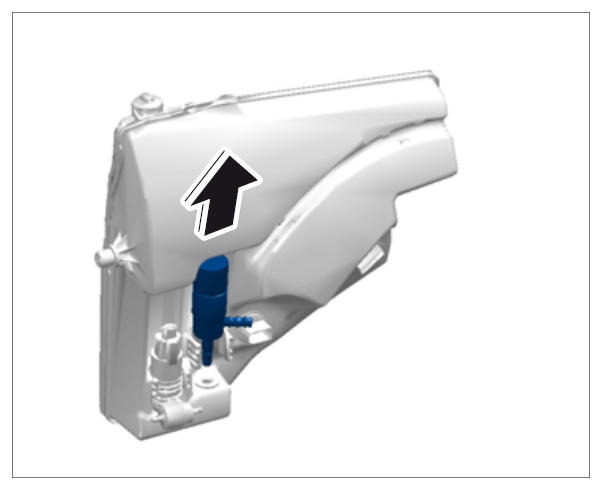

Fig 4: Pulling Off Pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
