Installing Pump For Headlight Cleaning System

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Check rubber sleeves and clips and replace them if necessary.

Press the pump into the rubber sleeve by turning it back and forward slightly.

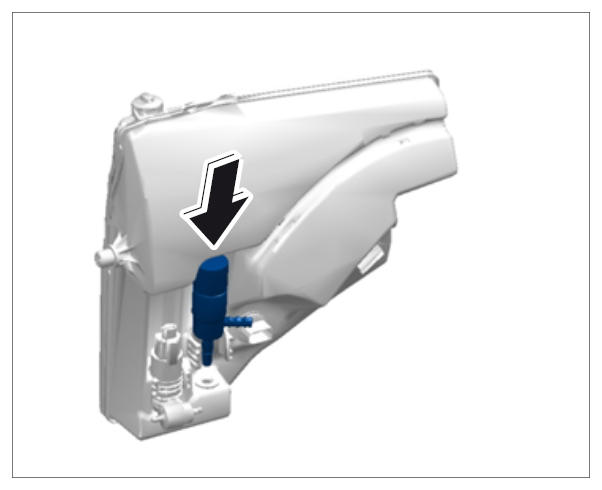

Fig 1: Pressing In Pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in and lock electric plug connection.

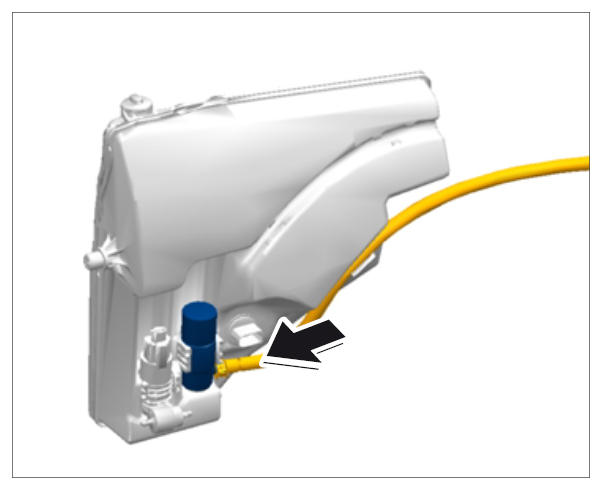

Fig 2: Connecting Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip electric line into the washer-fluid reservoir.
Press water hose for headlight cleaning system with the clip onto the pump connection.

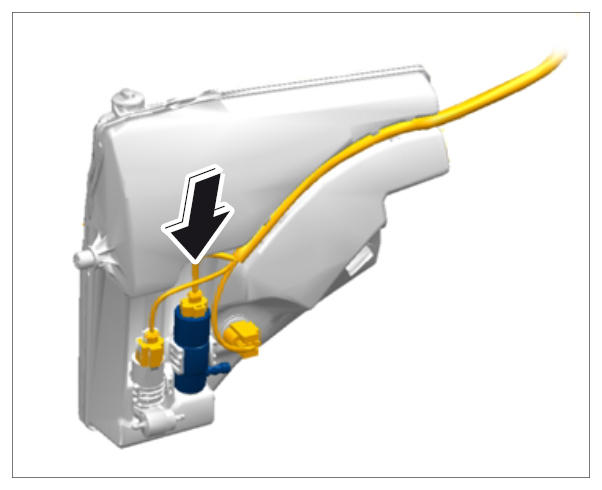

Fig 3: Fitting Water Hose
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in and lock electric plug connection for fluid level sensor. → 926719 REMOVING AND INSTALLING FLUID LEVEL SENSOR
