Removing Hose For Headlight Cleaning System

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Guide open ends of the hose for the headlight cleaning system into a suitable container, remove hose clamp and drain windscreen-washer reservoir.

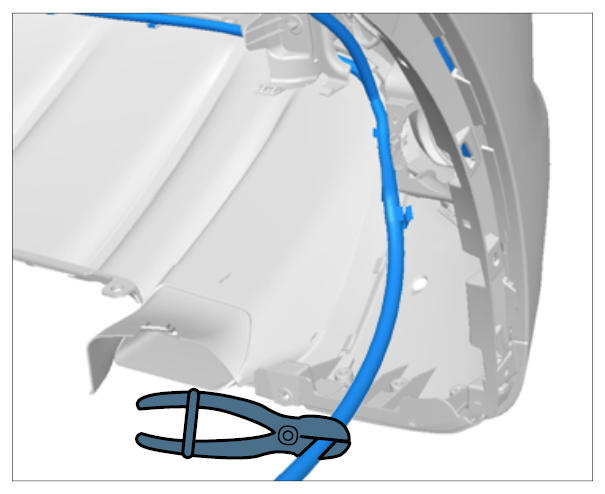

Fig 1: Removing Hose Clamp
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release hose for headlight cleaning system -1- at the headlight cleaning system pump -a- and pull it off.
Unclip and remove hose for headlight cleaning system -1- at the windscreen-washer reservoir.

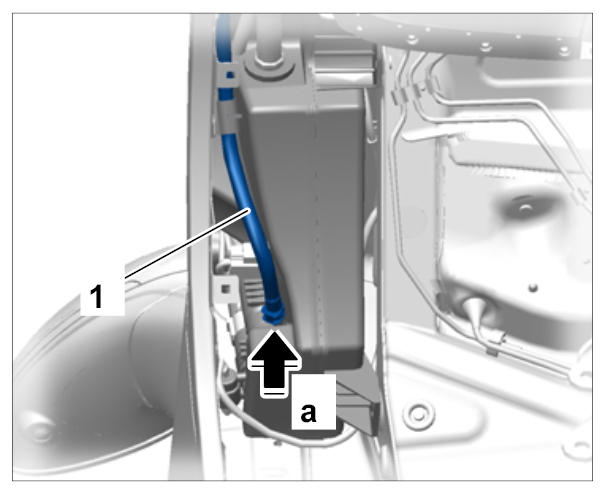

Fig 2: Identifying Headlight Cleaning System At Windscreen-Washer Reservoir
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check O-ring on the headlight cleaning system pump for damage and make sure that it is seated correctly.
