Removing Spray Nozzle For Headlight Cleaning System
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
- Some of the repair illustrations show only one side of the vehicle .
- Naturally, some steps also have to be performed on the opposite side of the vehicle as well .
- These must be carried out as a mirror image of the steps shown .

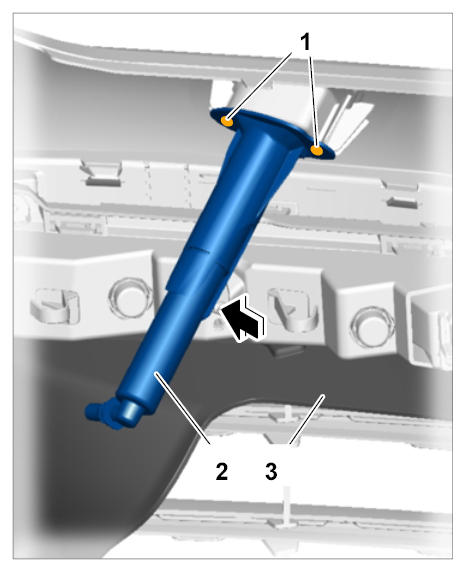

- Unscrew fastening screws -1- .
- Unclip spray nozzle for headlight cleaning system -2- from the vent guide -3- (-arrow- ) and remove it.
