Removing Cover For Spray Nozzle

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle .
Naturally, some steps also have to be performed on the opposite side of the vehicle as well .

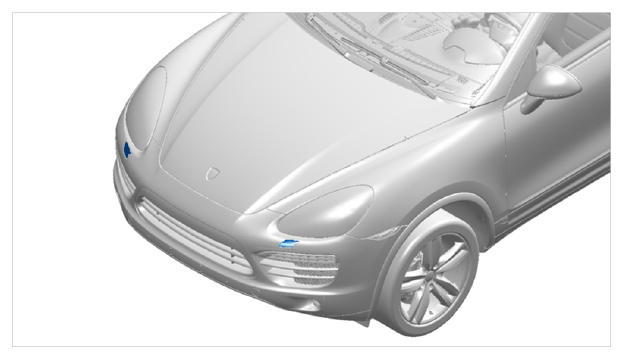

Fig 1: Identifying Cover For Spray Nozzle Installation Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disengage cap on nozzle head.
1. 1.1. Front apron installed: Grasp spray nozzle cover at the sides; the nozzle head -1- must then be pulled out -A- and held.
2. 1.2. Disengage cap -2- at the latches of the nozzle head -1- (-B- ) and remove it.

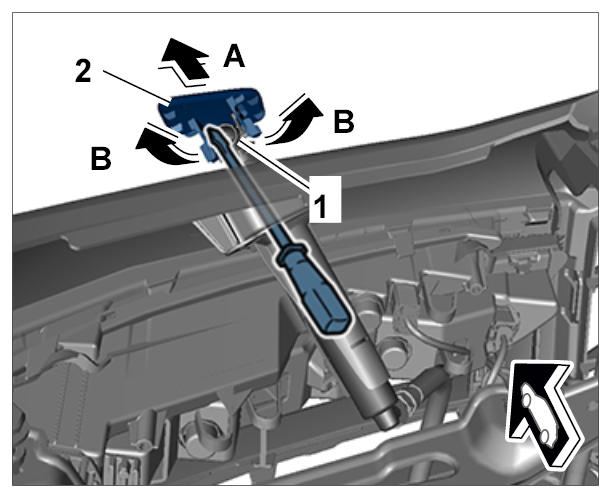

  Fig 2: Disengaging Cap On Nozzle Head
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
