Installing Cover For Spray Nozzle

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

If the cover of the spray nozzle has to be replaced, the new part must be painted the same colour as the front apron.

Engage cap on nozzle head.
1. 1.1. Pull nozzle head -1- out of the front apron -A- and hold it.
2. 1.2. Engage cap -2- at the latches on the nozzle head -1- (-B- ).

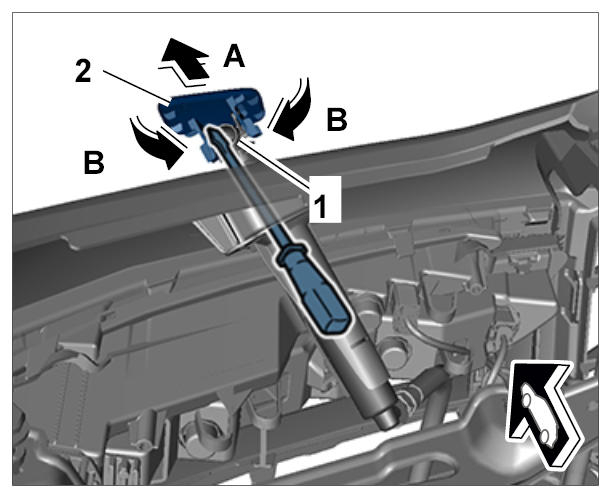

  Fig 1: Engaging Cap On Nozzle Head
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Slide nozzle head and cover into the locking teeth on the spray nozzle.
Release spray nozzle and check the gap to ensure that the spray nozzle cover is positioned evenly all the way round.
