Removing Fluid Level Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Collect windscreen washer system fluid in a suitable container.

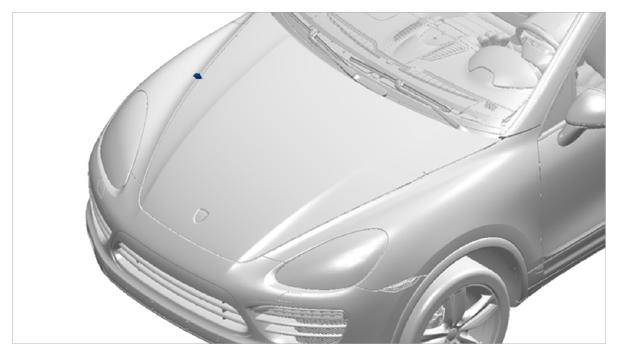

Fig 1: Identifying Fluid Level Sensor Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Release and pull off water line for headlight cleaning system. → 927819 REMOVING AND INSTALLING PUMP FOR HEADLIGHT CLEANING SYSTEM
Release and pull off electric plug connection for sensor -1- .

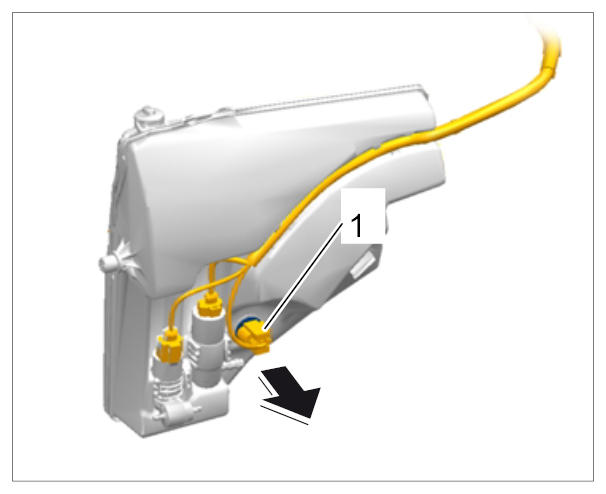

Fig 2: Pulling Off Electric Plug Connection For Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull the sensor -1- out of the rubber sleeve by turning it back and forward slightly.

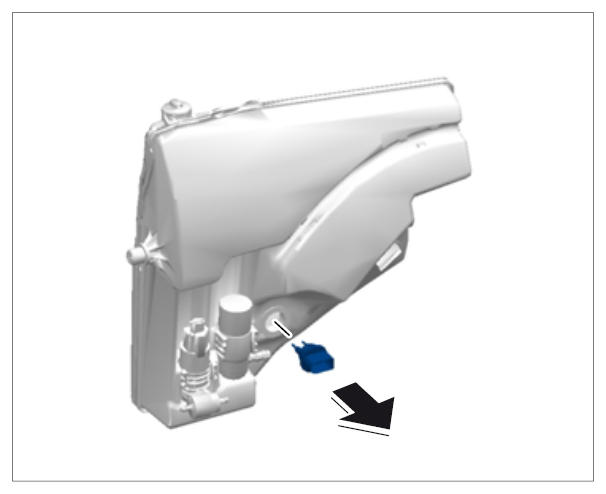

Fig 3: Pulling Out Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
