Removing Spray Nozzle

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Switch off ignition and remove remote control before disconnecting or removing load.

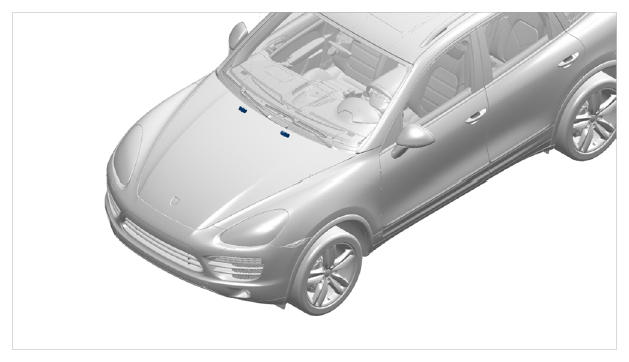

Fig 1: Identifying Spray Nozzle Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

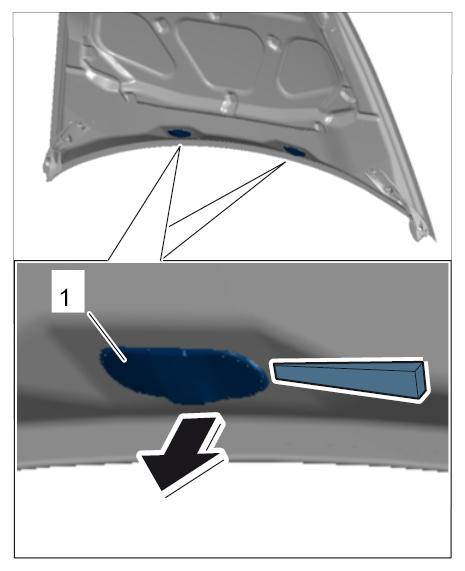

Lever off spray nozzle -1- using a plastic wedge.

Fig 2: Levering Off Spray Nozzle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

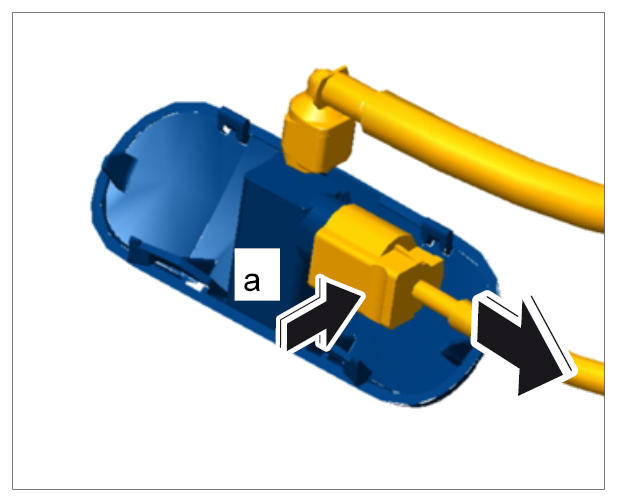

Release electric plug connection for spray nozzle -a- and pull it off.

Fig 3: Disconnecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

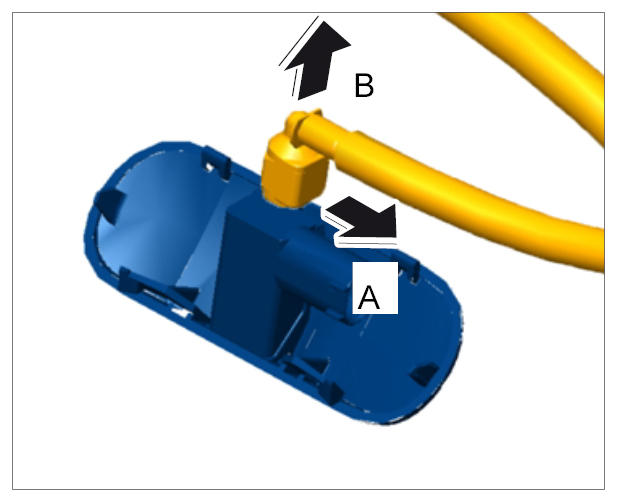

Release washer-fluid hose -A- and pull it off -B- .

Fig 4: Disconnecting Hose
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
