Installing Spray Nozzle

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The installation position ("L" for left and "R" for right) is marked on the inside of the spray nozzles. The spray nozzles must be installed in the vehicle according to this marking.

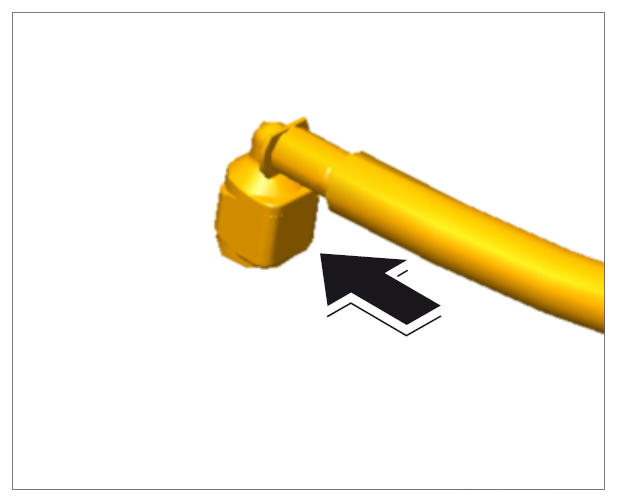

Slide in locking mechanism on washer-fluid hose -arrow- .

Fig 1: Sliding In Locking Mechanism
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

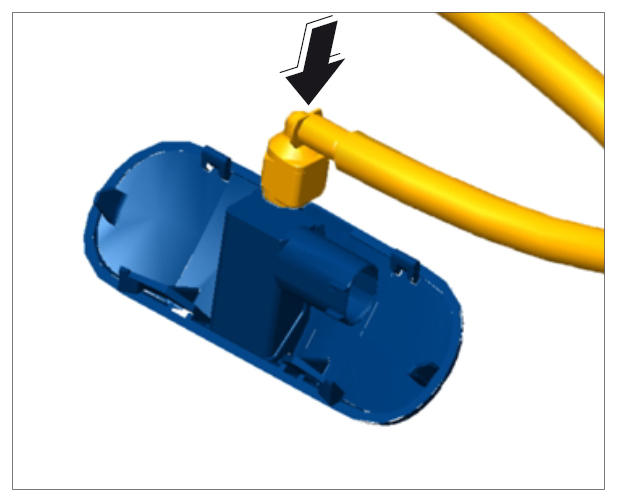

Attach washer-fluid hose to the spray nozzle until it engages securely -arrow- .

Fig 2: Clipping In Hose
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

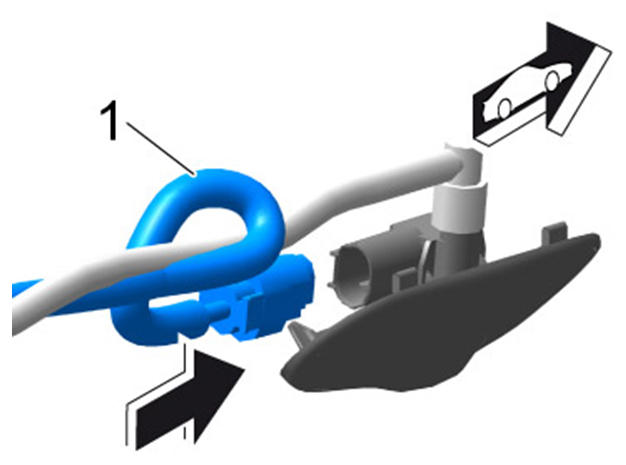

Plug in electric plug connection -1- for spray nozzle in direction of arrow until it engages securely.

Fig 3: Connecting Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

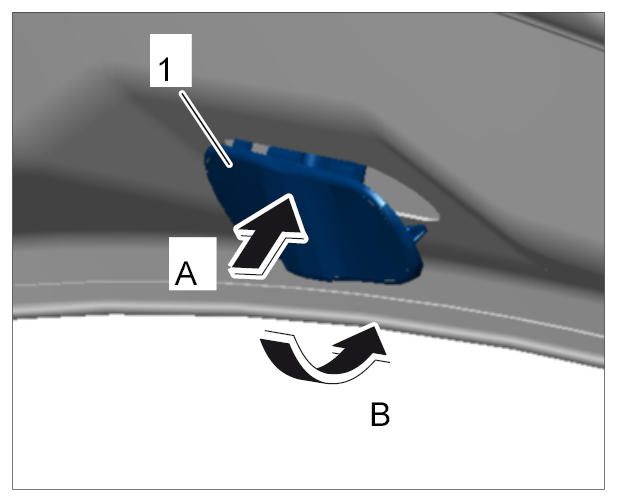

Fit spray nozzle -1- at the top -A- and clip it in at the bottom -B- .

Fig 4: Fitting Spray Nozzle At Top
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check spray nozzle setting and spray pattern.
