Removing Reservoir For Windscreen Washer System

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Collect windscreen washer system fluid in a suitable container.

Information

Check rubber sleeves, clips and water reservoir and replace them if necessary.

Pull water pipe off the connection on the pump for the headlight cleaning system. → 927819 REMOVING AND INSTALLING PUMP FOR HEADLIGHT CLEANING SYSTEM
Collect any emerging fluid in a suitable container.

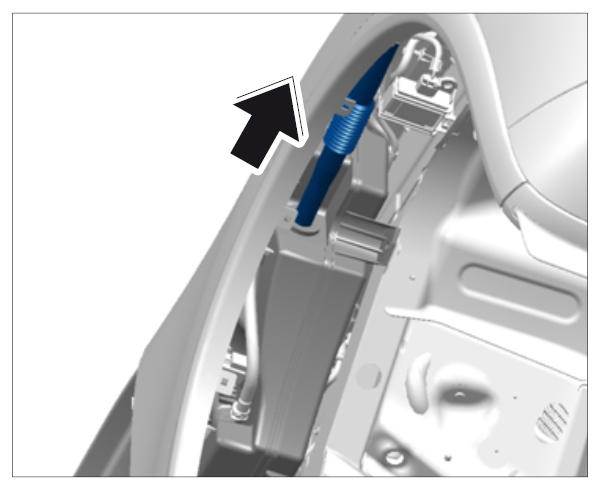

Pull the filler tube out of the reservoir.

Fig 1: Pulling Filler Tube Out Of Reservoir
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

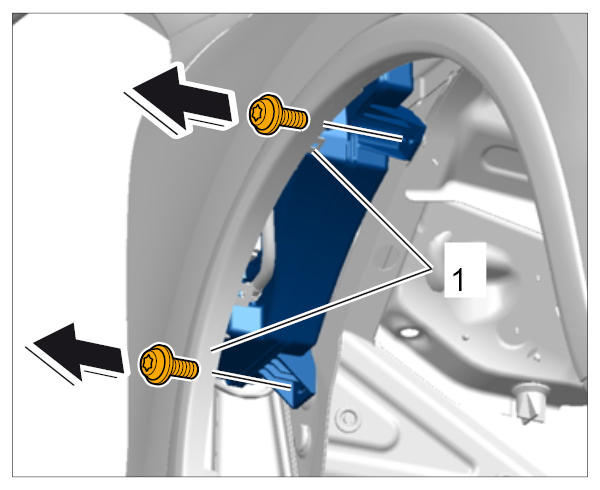

Support the bottom of the reservoir with your hand and unscrew and remove the two fastening screws on the reservoir -1- .

Fig 2: Removing Fastening Screws On Reservoir
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip electric line at the reservoir.

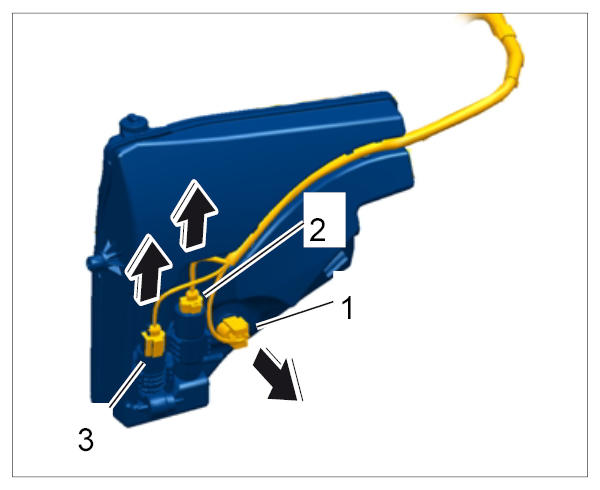

Release and pull off electric plug connections -1, 2, 3- .

Fig 3: Removing Electric Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release and pull water lines off the connections for the windscreen-washer pump. → 925619 REMOVING AND INSTALLING PUMP FOR WINDSCREEN WASHER SYSTEM
Disengage the reservoir and remove it sideways.
