Removing Pump For Windscreen Washer System

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Collect windscreen washer system fluid in a suitable container.

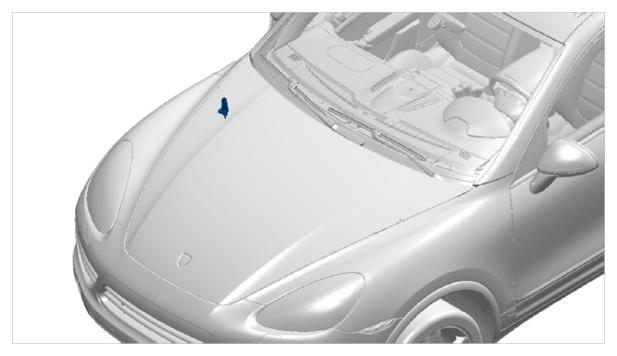

Fig 1: Identifying Pump For Windscreen Washer System Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Release and disconnect water line for the headlight cleaning system. → 927819 REMOVING AND INSTALLING PUMP FOR HEADLIGHT CLEANING SYSTEM
Release and pull off electric plug connection for pump for windscreen washer system -2- .

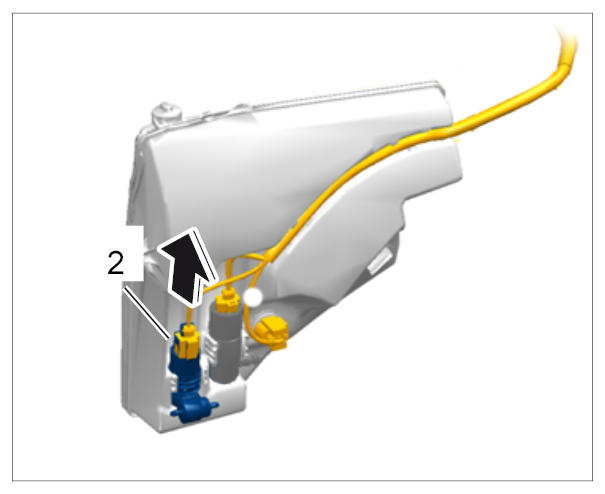

Fig 2: Pulling Off Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release and disconnect the two water hoses -3- from the pump.

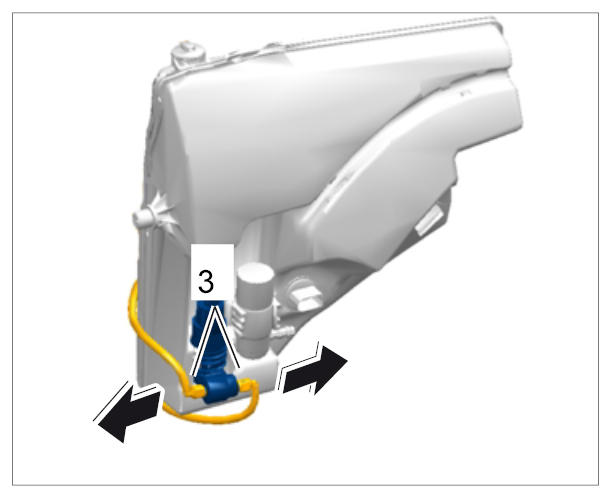

Fig 3: Pulling Off Water Hoses
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull the windscreen-washer pump up out of the reservoir and rubber sleeve.

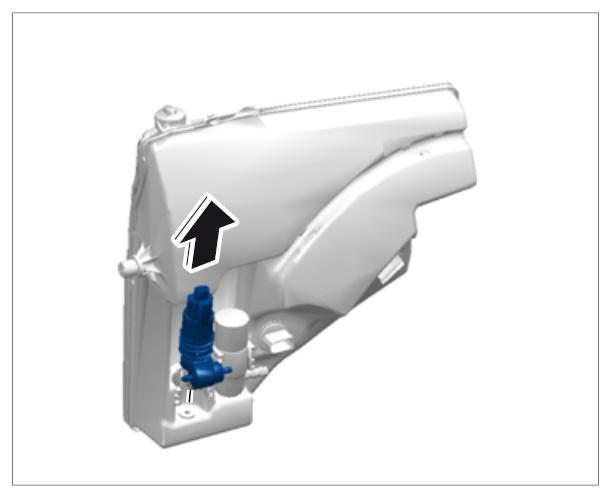

Fig 4: Pulling Out Pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
