Removing Wiper Arm For Rear Window Wiper System

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Electrically moved components

Danger of limbs being trapped

→ Switch off electric power to drive motor.

→ Make sure it does not switch on again.

→ Check that there is no electric charge.

Switch off the wiper actuating mechanism at the steering column, switch off ignition and remove remote control from the ignition lock.
Information

To position the wiper arm for the rear window wiper system correctly during installation, it must be at its end position (horizontal).

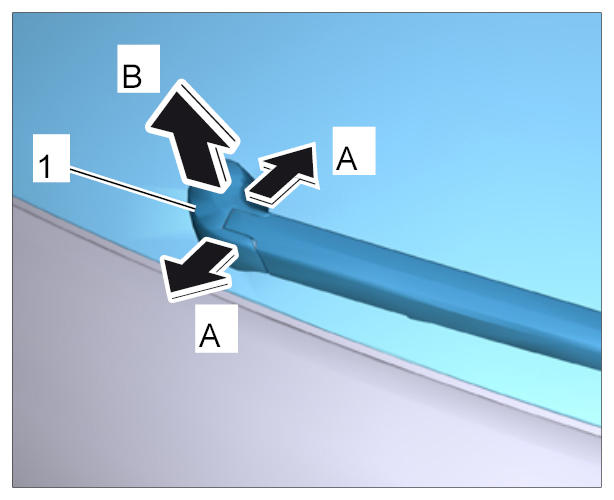

Open the cap -1- (-A- ) and pull it up and off -B- .

Fig 1: Removing Cap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

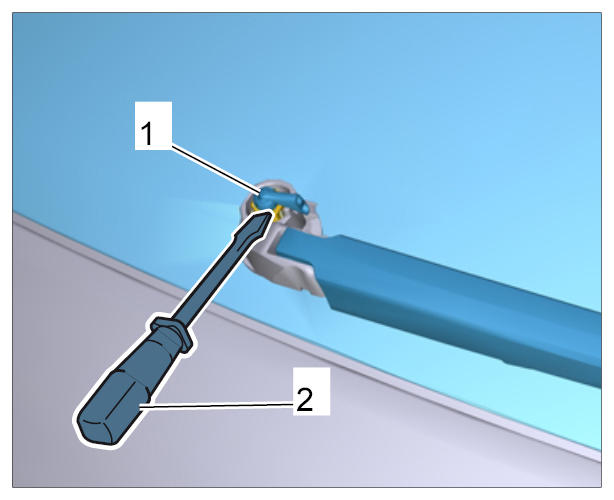

Lever the spray nozzle -1- off the wiper shaft using a screwdriver -2- .

Fig 2: Removing Spray Nozzle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

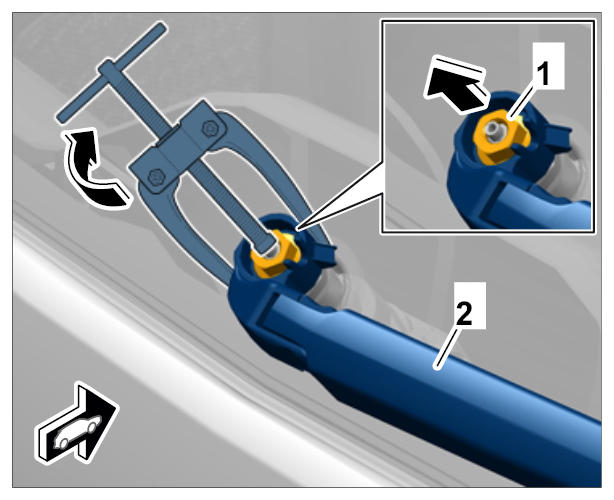

Screw off fastening nut -1- .
Pull wiper arm -2- off the wiper shaft using pole terminal puller WE 1660 .

Fig 3: Removing Wiper Arm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
