Installing Wiper Arm For Rear Window Wiper System

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fit wiper arm -2- on the wiper shaft.

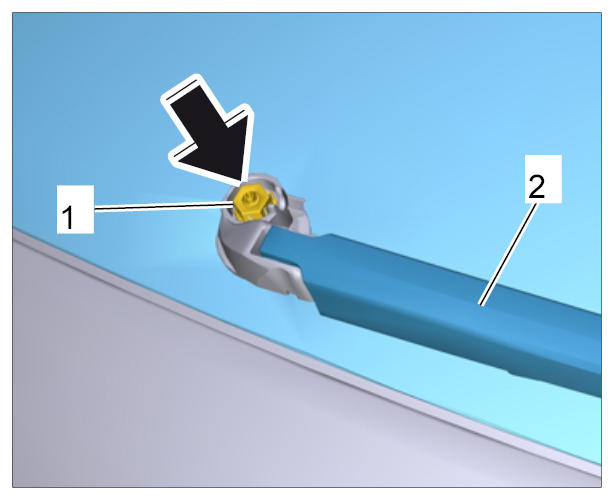

Fig 1: Fitting Wiper Arm On Wiper Shaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten fastening nut -1- .
Fit spray nozzle -1- onto the wiper shaft -2- and press on until it engages securely.

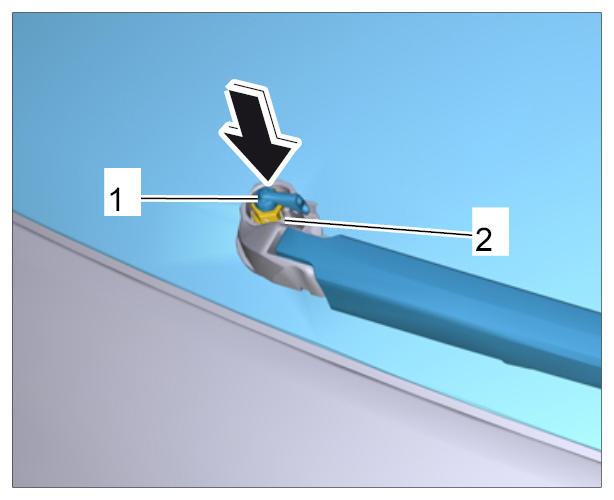

Fig 2: Fitting Spray Nozzle Onto Wiper Shaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Before fitting the cap, check the retaining lugs of the cap for damage. The cap must be replaced in the event of damage or if you have any doubts about it.
Fit cap -1- and press on in direction of arrow until it engages securely.

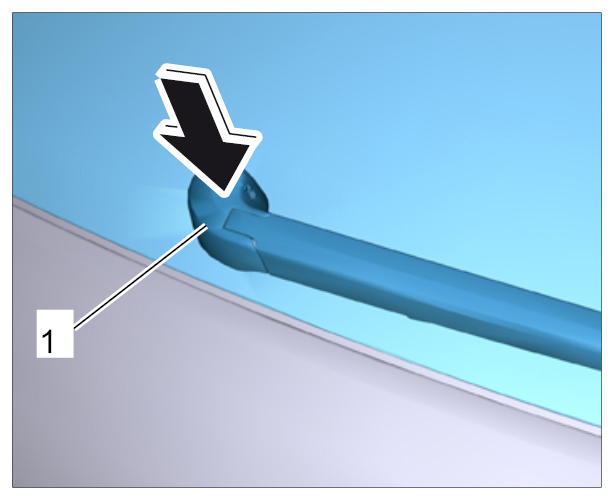

Fig 3: Installing Cap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Perform function test on rear wiper and spray nozzle for rear wiper.
