Removing Wiper Motor

Information

• When the bonnet is open the wiper system is deactivated; only after closing the bonnet and switching the wiper system off and on again are the wipers reactivated  .
• The wiper control unit is located in the wiper motor  .

Information

Always comply with the regulations for handling ESD-sensitive components!

• Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche  .
• The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed  .
• Never touch the electric pins and plug contacts  .

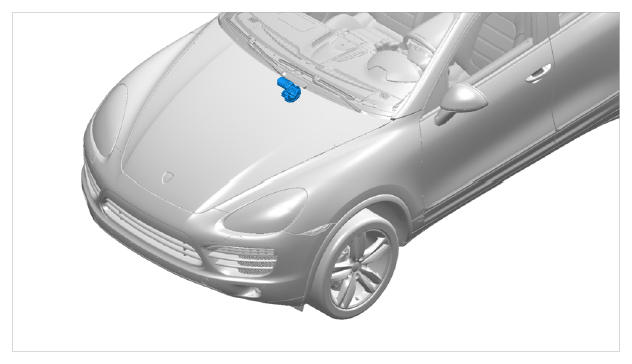

  Fig 1: Identifying Wiper Motor Installation Position

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

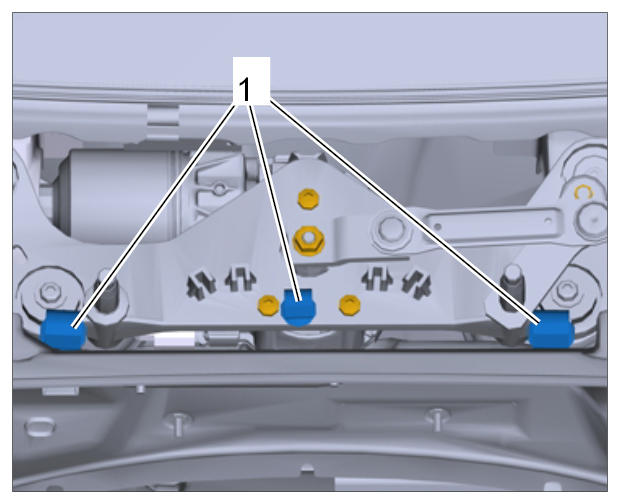

1. Unclip engine wire harness from the three clips -1-  .
   Fig 2: Identifying Engine Wire Harnesses Clips

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

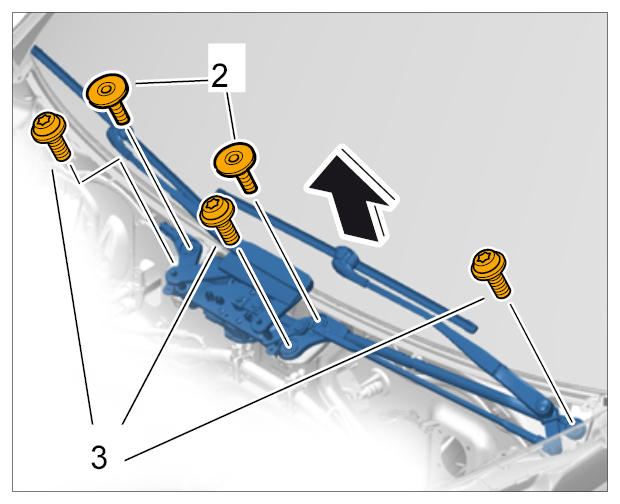

2. Unscrew fastening screws -2 and 3-  .
   Fig 3: Removing Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Rotate complete wiper linkage at the front upwards and then to the left and remove it in an upward direction.

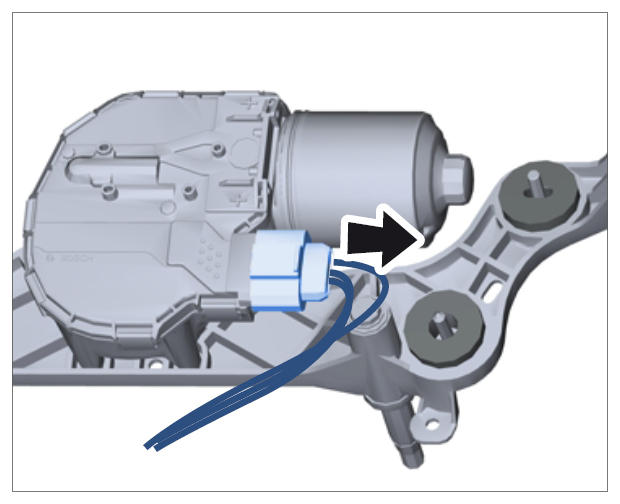

4. Release and pull off electric plug connection.
   Fig 4: Pulling Off Electric Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

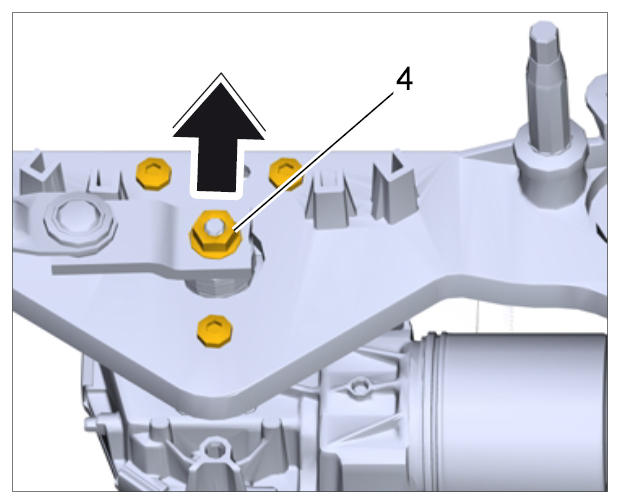

5. Unscrew fastening nut on the wiper motor -4-  .
   Fig 5: Removing Fastening Nut On Wiper Motor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

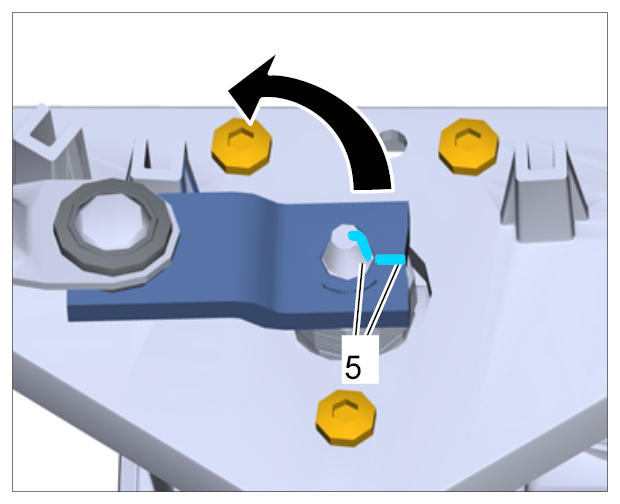

6. Mark the drive position of the wiper linkage -5-  .
   Fig 6: Marking Drive Position Of Wiper Linkage

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Disengage drive mechanism -arrow-  .

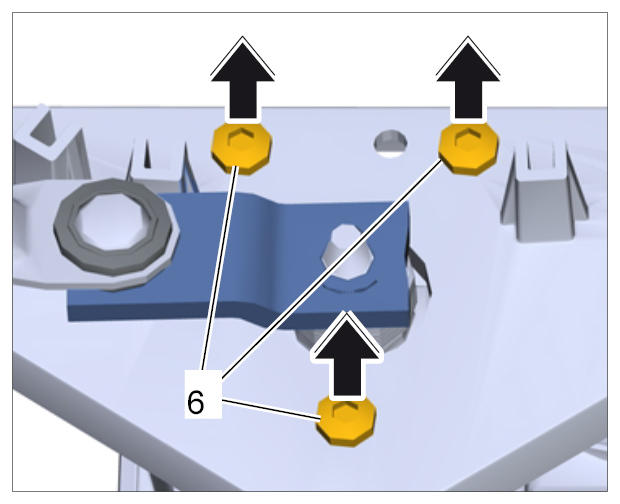

8. Unscrew three fastening screws -6-  and remove wiper motor.
   Fig 7: Removing Fastening Screws On Wiper Motor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Remove wiper motor in a downward direction.
