Removing Rain Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit

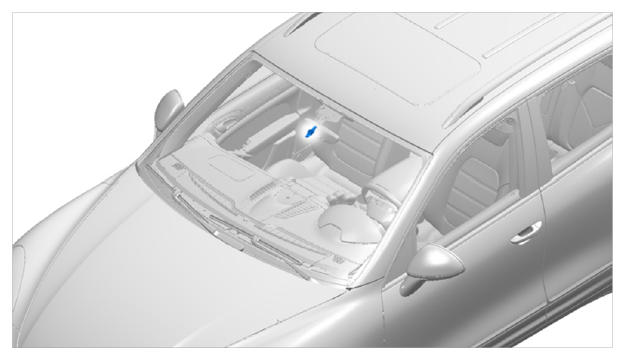

Fig 1: Identifying Rain Sensor Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Switch off ignition and remove remote control (hand-held transmitter).
Using a plastic wedge, carefully detach the rain sensor -1- out of the adhesive plate -2- .

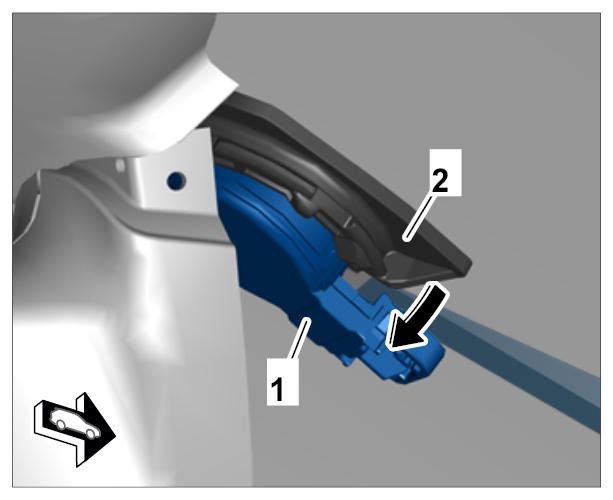

Fig 2: Removing Rain Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect electric plug connection -1- .

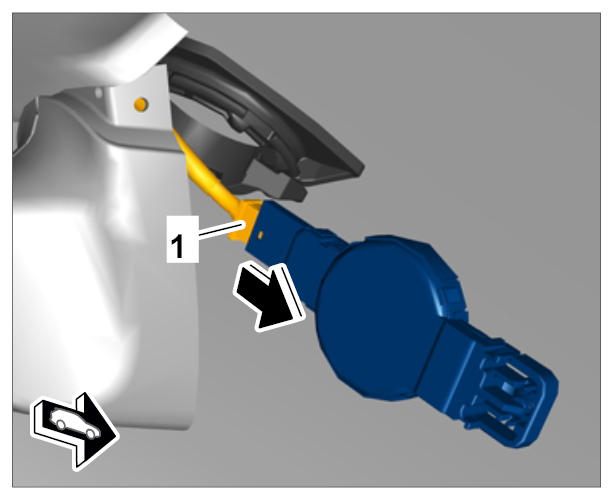

Fig 3: Disconnecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
