Installing Rain Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Limited rain sensor function if the following points are not observed:

There must be no air trapped between the windscreen and silicone layer on the rain sensor .
The temperature of the windscreen and rain sensor must be approx. 20 °C during assembly. Carefully heat the windscreen and rain sensor using a hot-air gun if necessary .
The contact surfaces must be free of grease and dirt .
Do not touch silicone layer on the rain sensor .
Do not remove the protection cap from a new rain sensor until immediately before pressing the rain sensor onto the windscreen .

Clean inner area of adhesive plate.
Plug in electric plug connection -1- until the connector engages securely.

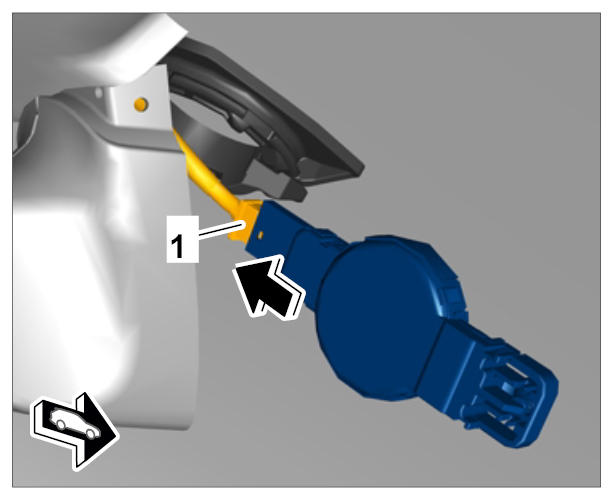

Fig 1: Connecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the protection cap from the sensor.
Position the sensor -1- and insert it into the adhesive plate -2- .

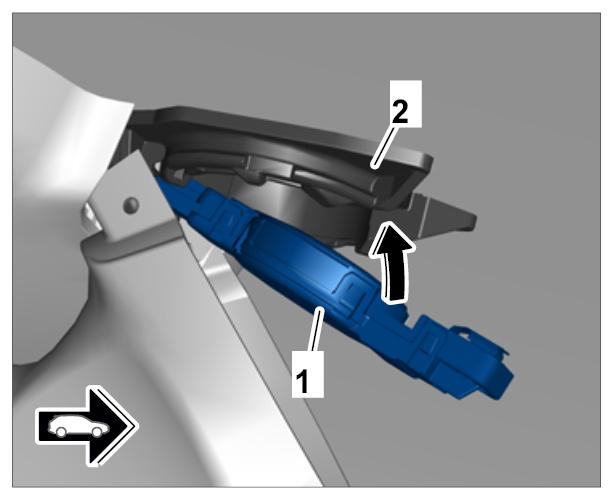

Fig 2: Installing Rain Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check the function of the rain sensor: Use a spray bottle filled with water to moisten the windscreen (close to the rain sensor) and switch on the windscreen wiper. Subsequent work
