Installing Pressure Switch

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Replace O-ring on the pressure switch and coat it with refrigerant oil.
Information

Support the refrigerant line with your hand close to the pressure switch when screwing the pressure switch on and off.
Screw on pressure switch -1- and tighten to the prescribed tightening torque.

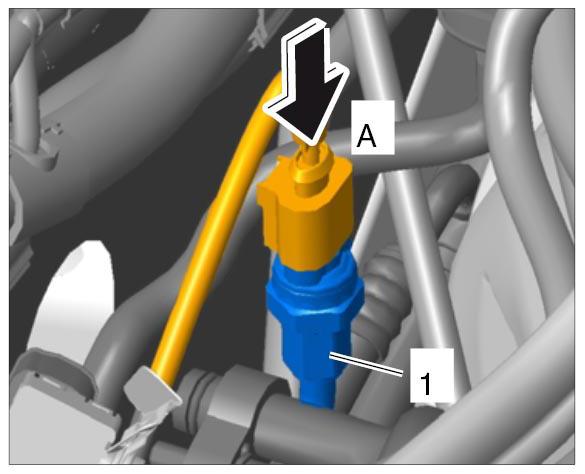

Fig 1: Installing Pressure Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect electric plug connection on the pressure switch -A- until the connector engages securely.
Fit water drip pan -2- and tighten fastening screw -1- to the prescribed tightening torque.

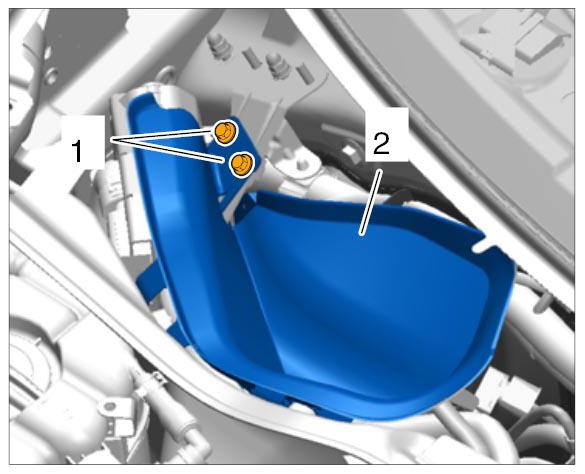

Fig 2: Identifying Water Drip Pan With Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
