Installing Expansion Valve

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Before the expansion valve is re-installed, the O-rings of the refrigerant lines must be checked for damage and replaced if necessary .
Wet the O-rings of the refrigerant lines with refrigerant oil .

Carefully slide the expansion valve -5- onto the refrigerant lines from the evaporator. Do not tilt.

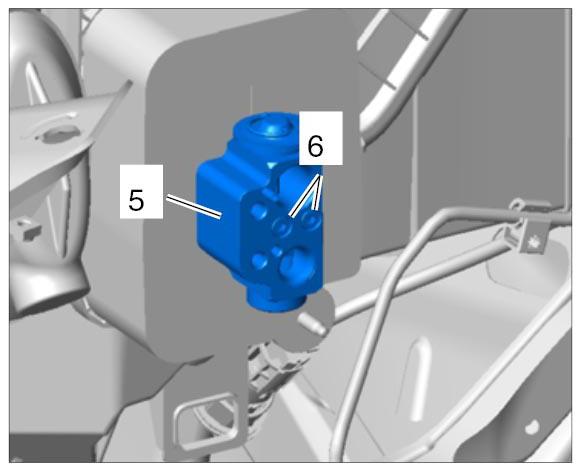

Fig 1: Identifying Expansion Valve With Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten both fastening screws -6- on the expansion valve to the prescribed tightening torque. Tightening torque 5.5 Nm (4 ftlb.)
Fit refrigerant lines -4- on the expansion valve -5- and press into place. Do not tilt.

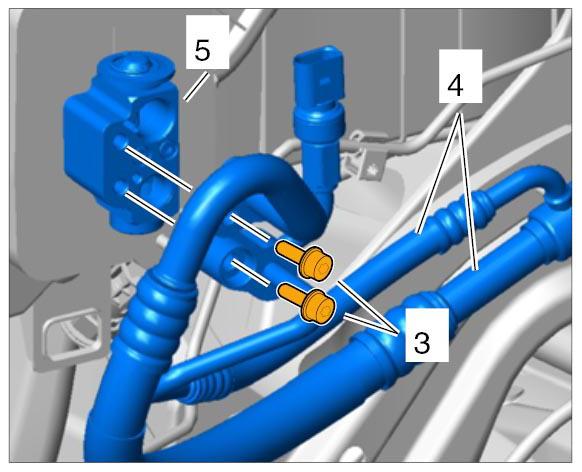

Fig 2: Identifying Refrigerant Lines On Expansion Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten both fastening screws -3- securing refrigerant lines to the expansion valve -5- to the prescribed tightening torque. Tightening torque 12 Nm (9 ftlb.) +/-1.5 Nm (+/-1 ftlb.)
Insert water drip pan -2- and tighten fastening screws -1- to the prescribed tightening torque. Tightening torque 8 Nm (6 ftlb.)

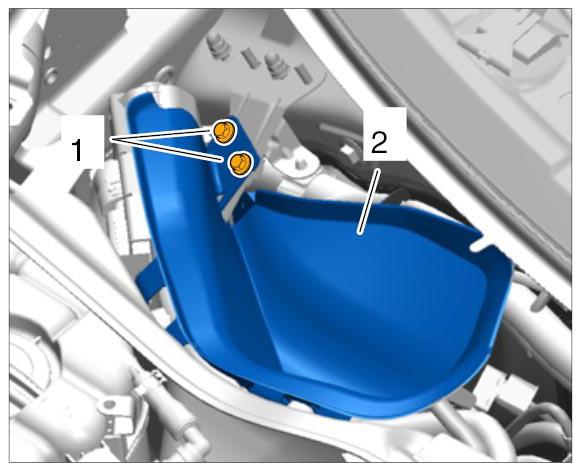

Fig 3: Identifying Water Drip Pan With Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
