Removing Evaporator

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove expansion valve.

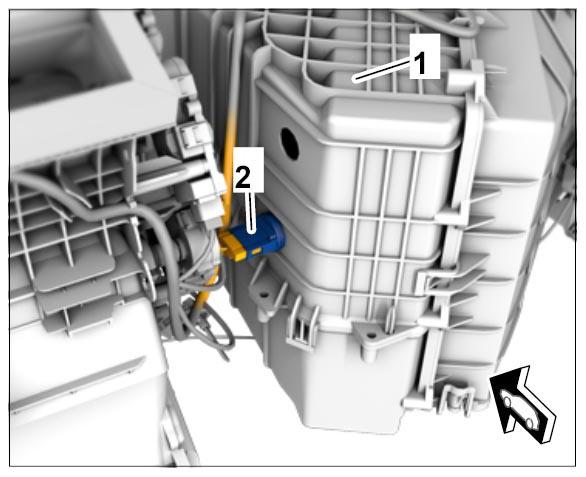

Disconnect electric plug connection on the evaporator temperature sensor -2- .

Fig 1: Identifying Evaporator Temperature Sensor And Expansion Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

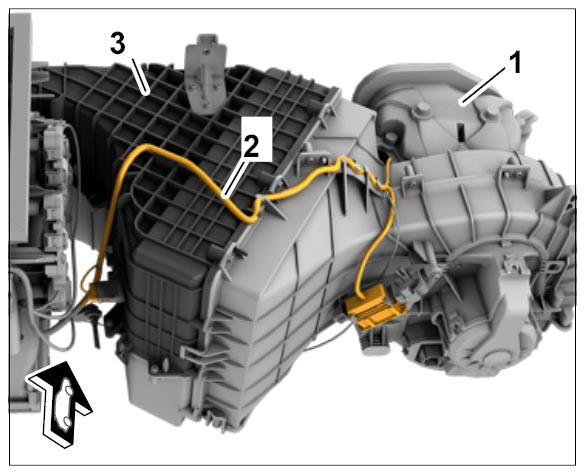

Disconnect wiring harness -2- in the colored area and set it aside.
1. 3.1. Disconnect electric plug connections on the servo motors.
2. 3.2. Disconnect wiring harness -2- from the brackets on the heating/fresh-air unit -1- .

  Fig 2: Identifying Wiring Harness From Brackets On Heating/Fresh-Air Unit
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

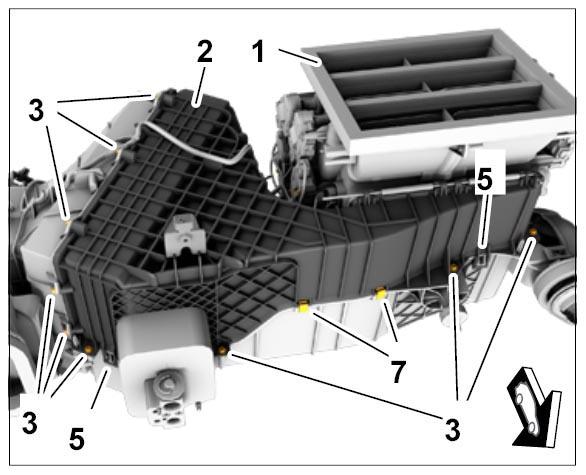

Remove upper part of evaporator housing -2- .

Fig 3: Identifying Upper Part Of Evaporator Housing (Rear)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Remove foam seal -2- .

  Fig 4: Loosening Locating Pin On Upper Part Of Housing
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

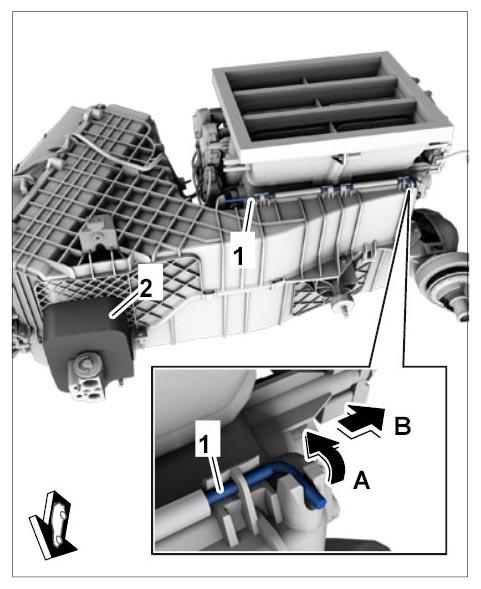

2. 4.2. Unclip locating pin -1- (-arrow A- ) and pull it out -arrow B- .

  Fig 5: Loosening Locating Pin On Upper Part Of Housing
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

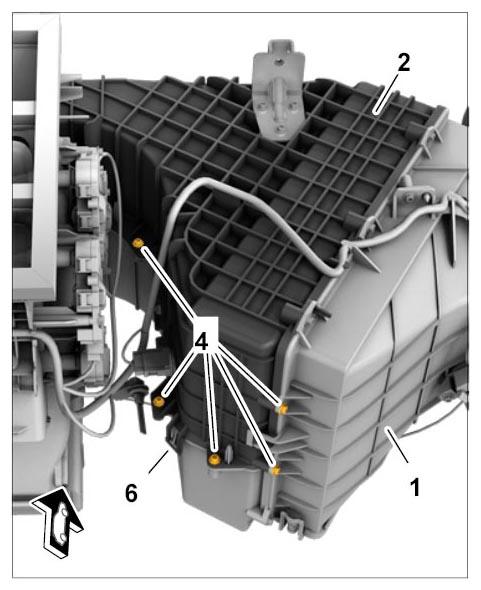

3. 4.3. Loosen fastening screws -3- and -4- .

  Fig 6: Identifying Upper Part Of Evaporator Housing (Rear)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 7: Identifying Upper Part Of Evaporator Housing (Front)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 4.4. Loosen clamps -7- carefully. The clamps are not available as spare parts and must be re-used.

  Fig 8: Identifying Upper Part Of Evaporator Housing (Rear)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. 4.5. Loosen clips -5- and -6- .

  Fig 9: Identifying Upper Part Of Evaporator Housing Clips (Rear)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 10: Identifying Upper Part Of Evaporator Housing Clips (Front)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

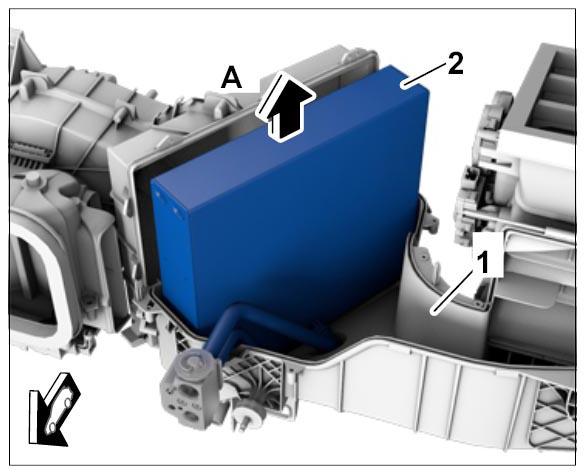

Remove evaporator -2- from lower part of evaporator housing -1- (-arrow A- ).

Fig 11: Removing Evaporator From Lower Part Of Evaporator Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
