Component Overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

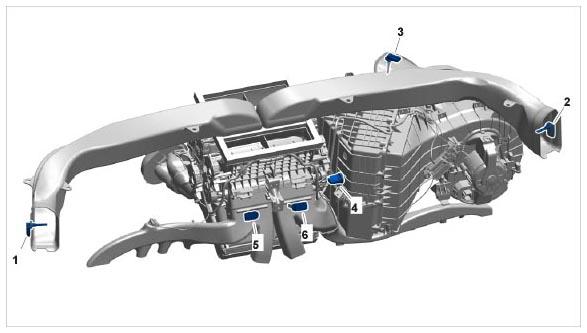

Fig 1: Identifying Temperature Sensors Installation Positions
G09941564Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Temperature sensor in left side vent
  2. Temperature sensor in right side vent
  3. Temperature sensor for intake air temperature (described under 875919 Outside temperature sensor)
  4. Temperature sensor for evaporator
  5. Temperature sensor in left footwell outlet vent
  6. Temperature sensor in right footwell outlet vent
