Removing Desiccator

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Refrigerant

Danger of freezing

→ Avoid contact with refrigerant.

→ Wear personal protective gear.

→ Observe the safety regulations for working on air-conditioned vehicles and dealing with refrigerant.

→ Observe the safety regulations for extraction and filling systems.

→ Observe the instructions for repairing air conditioning systems and storing spare parts.

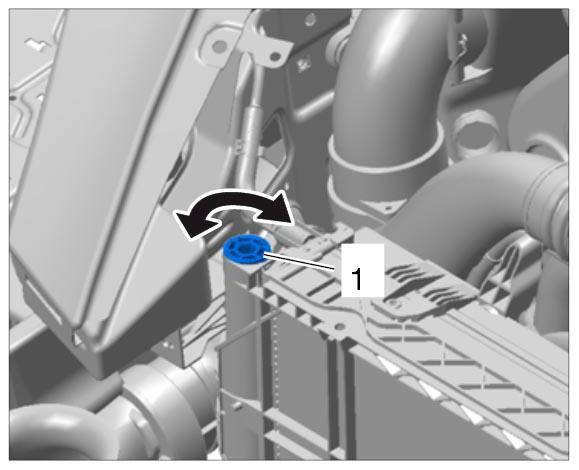

Unscrew stopper -1- on the condenser and remove it in an upward direction.

Fig 1: Opening Stopper
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

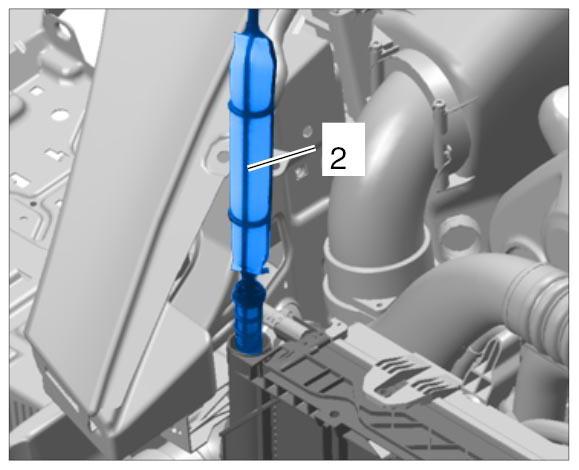

Use pliers to pull the desiccator -2- up out of the condenser.

Fig 2: Identifying Desiccator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
