Installing Desiccator

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Refrigerant

Danger of freezing

→ Avoid contact with refrigerant.

→ Wear personal protective gear.

→ Observe the safety regulations for working on air-conditioned vehicles and dealing with refrigerant.

→ Observe the safety regulations for extraction and filling systems.

→ Observe the instructions for repairing air conditioning systems and storing spare parts.

Information

The desiccator must be replaced in the event of malfunctions in the system (e.g. accident damage or air conditioning system is depressurized)!
Used refrigerant oil extracted from a previously run air conditioning unit must not be re-used!

Replace both O-rings -3- on the stopper -1- and coat them with refrigerant oil.

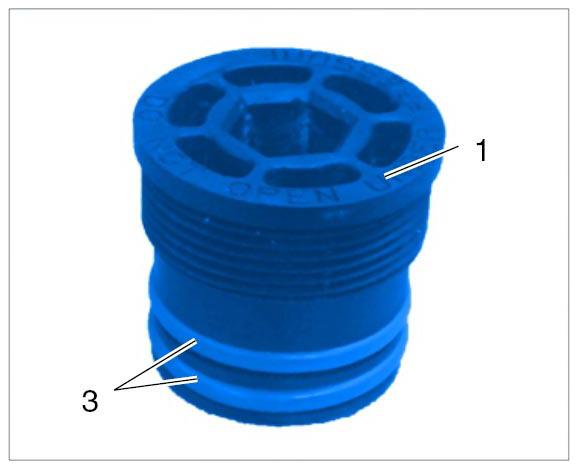

Fig 1: Identifying O-Rings On Stopper
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Slide desiccator -2- into the condenser.

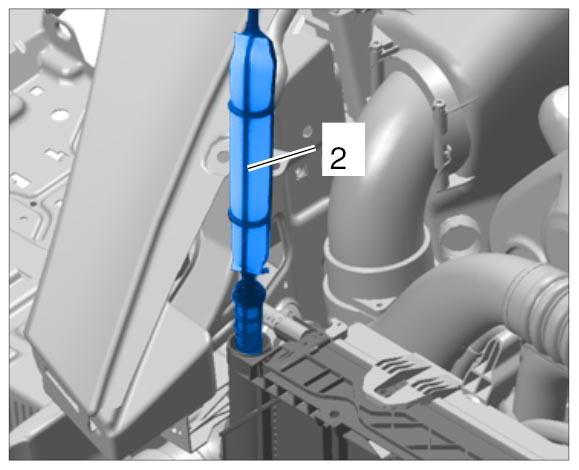

Fig 2: Identifying Desiccator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Place stopper -1- on the condenser and tighten it.

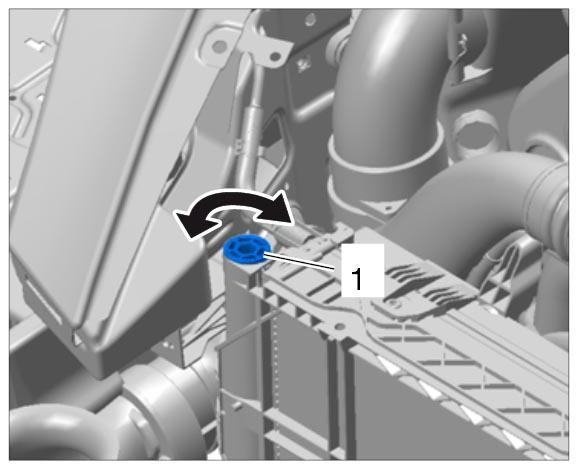

Fig 3: Tightening Stopper
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
