Installing Condenser

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Before re-installing the component, check the O-rings of the refrigerant lines for damage and replace them if necessary.

Wet the O-rings of the refrigerant lines with refrigerant oil.

Close off all lines and connections using suitable stoppers during removal.

Do not open the stoppers for the lines and connections until shortly before installation.

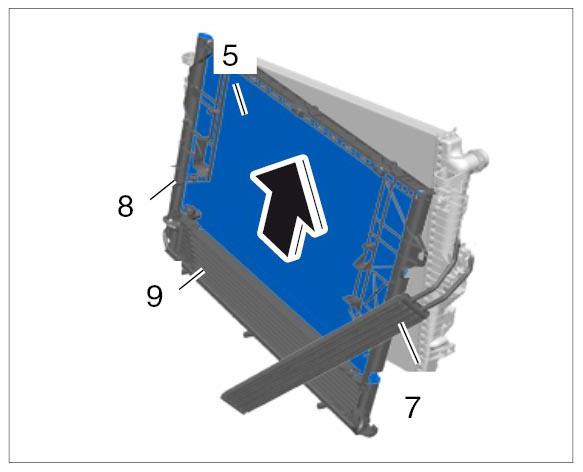

Slide the condenser -5- into the plastic frame -8- with the ATF cooler -9- from below.

Fig 1: Sliding Condenser Into Plastic Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

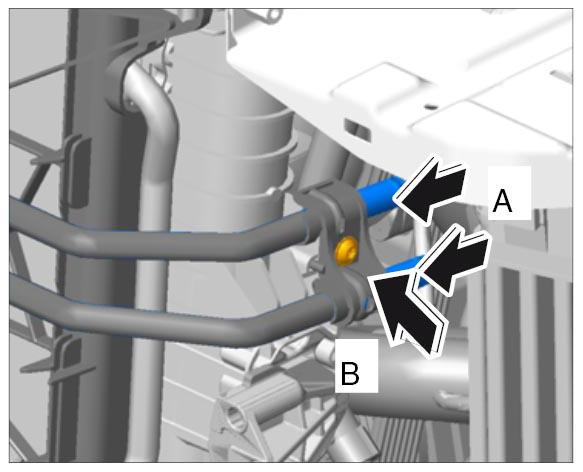

Tighten fastening screw for the clamp on the hydraulic lines at the radiator -arrow B- .

Fig 2: Installing Hydraulic Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Engage the condenser -5- in the plastic frame -8- .
Position the plastic frame -8- on the cooler and clip in the two locks -6- .

Fig 3: Identifying Power-Steering Cooler With Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

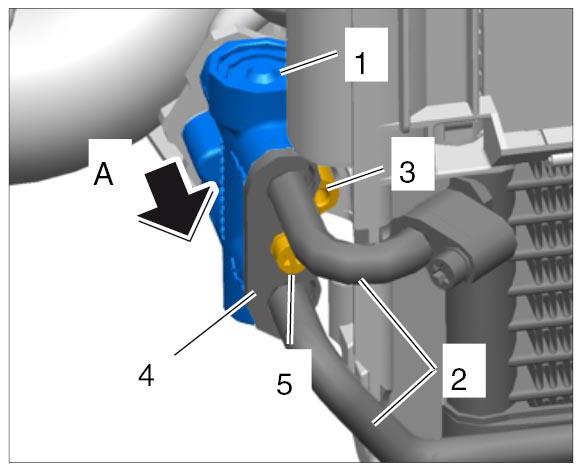

Tighten fastening screw -3- securing ATF thermostat to radiator.

Fig 4: Installing ATF Thermostat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

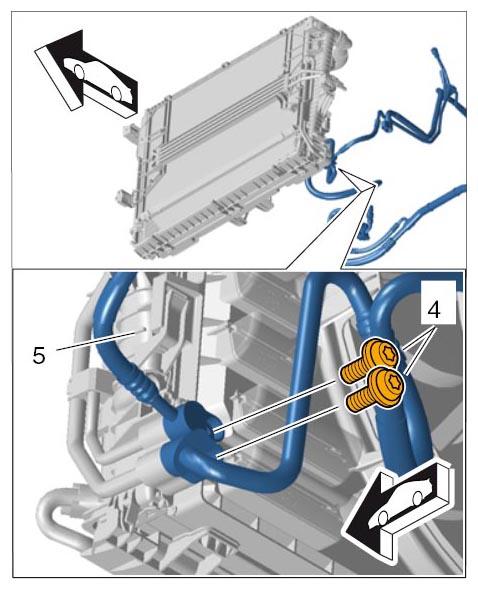

Tighten fastening screws -4- used to secure the refrigerant lines to the condenser to the prescribed tightening torque.

Fig 5: Identifying Air-Conditioning Lines To Condenser Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

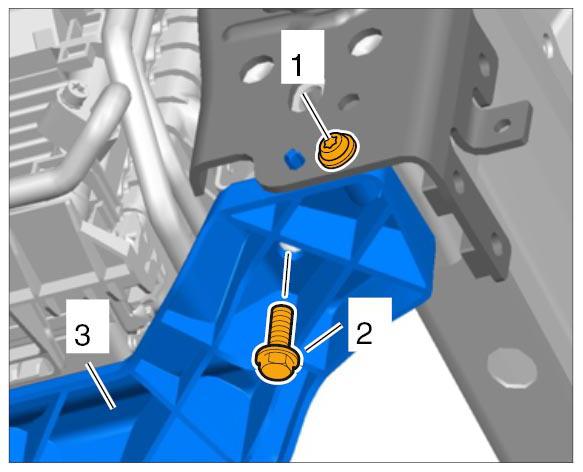

Secure the strut -3- with the side fastening screw -1- .

Fig 6: Identifying Strut With Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Secure the strut -3- with the fastening screw -2- .
