Removing Condenser/Evaporator Line At The Front

→ Avoid contact with refrigerant.

→ Wear personal protective gear.

→ Observe the safety regulations for working on air-conditioned vehicles and dealing with refrigerant.

→ Observe the safety regulations for extraction and filling systems.

→ Observe the instructions for repairing air conditioning systems and storing spare parts.

Information

Always replace the sealing rings on the refrigerant lines.

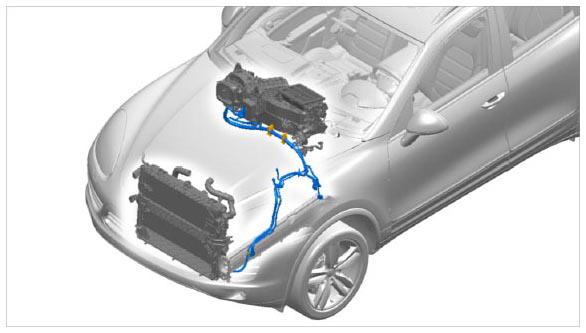

Fig 1: Identifying Refrigerant Line From Condenser To Expansion Valve

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

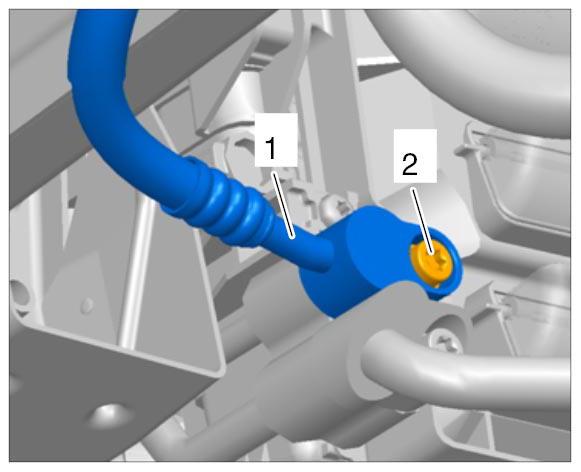

1. Loosen the fastening screw -1-  on the top refrigerant line -2-  at the condenser.
   Fig 2: Identifying Refrigerant Line - Condenser

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

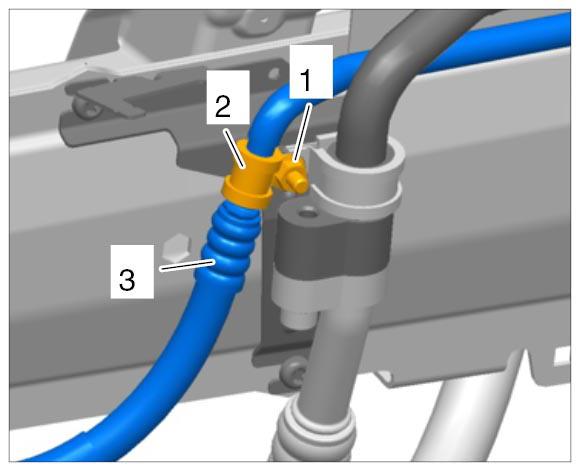

2. Loosen the fastening nut -1-  on the holder -2-  for the refrigerant line and remove the refrigerant line -3-  from the holder.
   Fig 3: Identifying Front Refrigerant Line Holder With Nut

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Remove the refrigerant line from the compressor to the connection point. → 874519 REMOVING AND INSTALLING COMPRESSOR/EVAPORATOR LINE

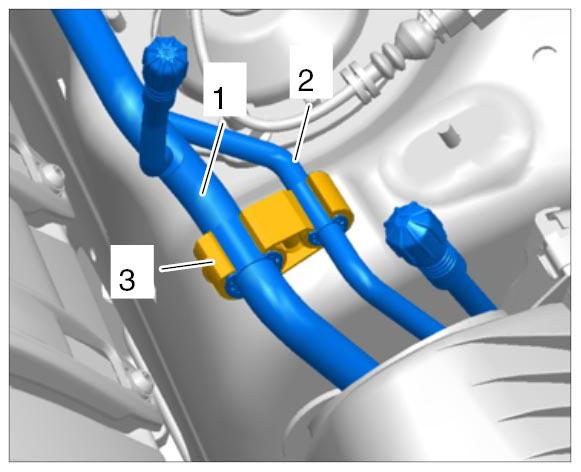

4. Unclip refrigerant lines -1, 2-  from the holder -3-  on the left wheel housing.
   Fig 4: Identifying Refrigerant Line Holder On Left Wheel Housing

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

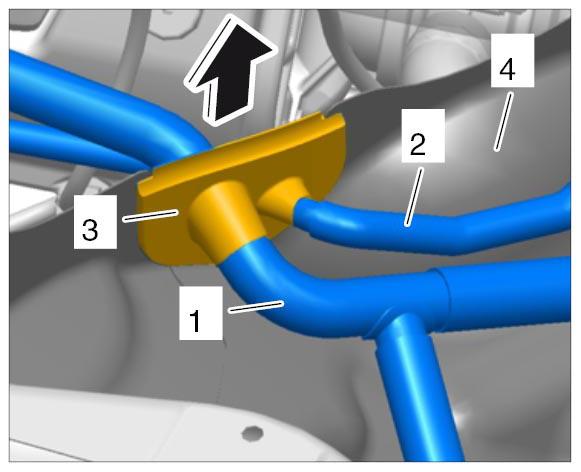

5. Pull the refrigerant lines -1, 2-  together with the rubber boot -3-  up -arrow  out of the bulkhead -4-  .
   Fig 5: Removing Rubber Boot On Refrigerant Lines

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

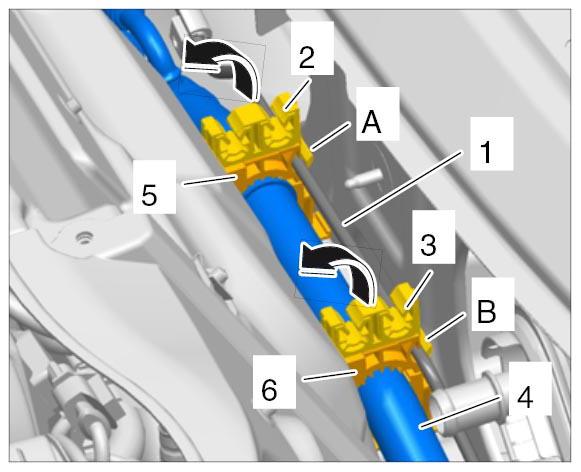

6. Unclip the refrigerant line from the holders in the plenum panel.
   Fig 6: Removing Refrigerant Line Holders In Plenum Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 6.1. Unclip vacuum line -1-  from the upper parts of the holders -2, 3-  .
   2. 6.2. Open the upper parts of the holders -2, 3-  using a suitable tool and bend them up -arrows-  .
   3. 6.3. Remove refrigerant line -4-  from the lower parts of the holders -5, 6-  .

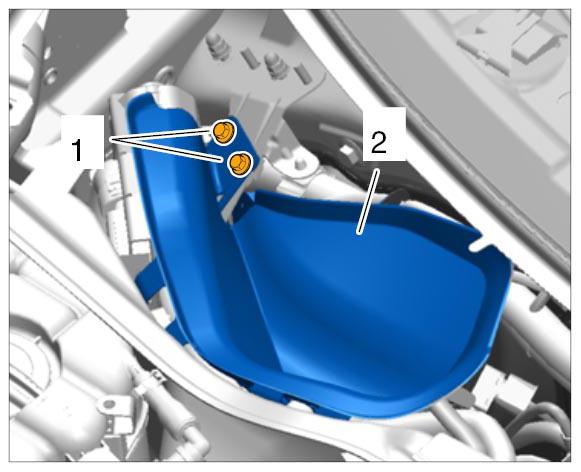

7. Unscrew inner fastening screw -1-  on the DME control unit bracket and remove water drip pan -2-  .
   Fig 7: Identifying Water Drip Pan With Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Remove front part of refrigerant line from the compressor to the evaporator from the vehicle.

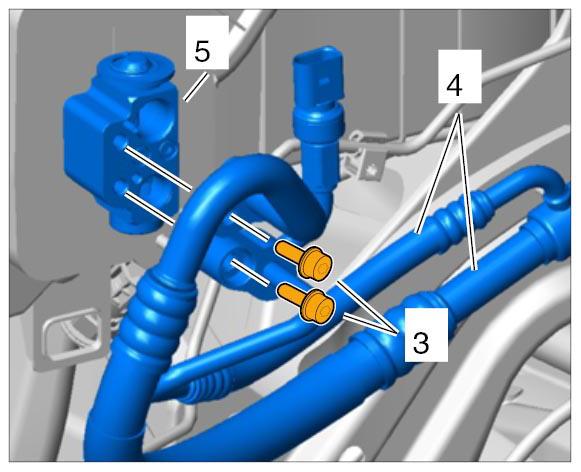

9. Unscrew the two fastening screws -3-  for the refrigerant lines -4-  on the expansion valve -5-  .
   Fig 8: Identifying Refrigerant Lines, Expansion Valve And Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
10. Pull the two refrigerant lines -4-  out of expansion valve -5-  and move them up/down to keep them out of the way.
11. Take the refrigerant line out of the vehicle.
