Installing Condenser/Evaporator Line At The Front

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Fill level too low

Risk of damage to components.

→ Do not start the engine.

→ Do not tow the vehicle.

Information

Always replace the sealing rings on the refrigerant lines.

Fit the refrigerant line in the vehicle.

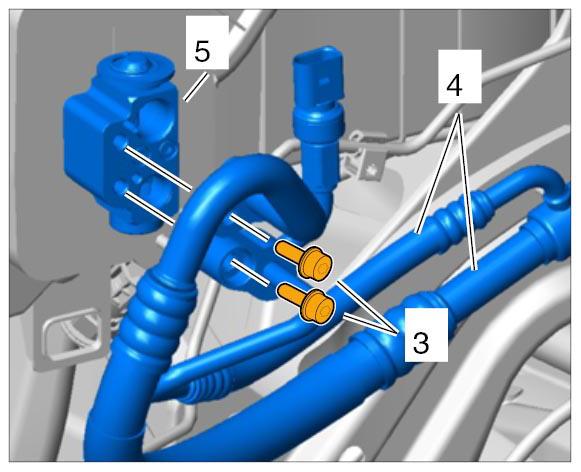

Position the refrigerant lines -4- on the expansion valve -5- and press them into place. Do not tilt.

Fig 1: Identifying Refrigerant Lines, Expansion Valve And Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten the two fastening screws -3- used to secure the refrigerant lines to the expansion valve -5- to → Tightening torque: 12 Nm (9 ftlb.)+/-1.5 Nm (+/-1 ftlb.) .

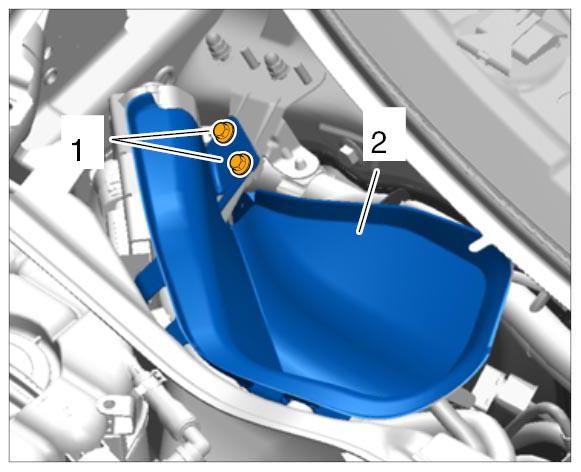

Fit water drip pan -2- and tighten fastening screws -1- to → Tightening torque: 8 Nm (6 ftlb.) .

Fig 2: Identifying Water Drip Pan With Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

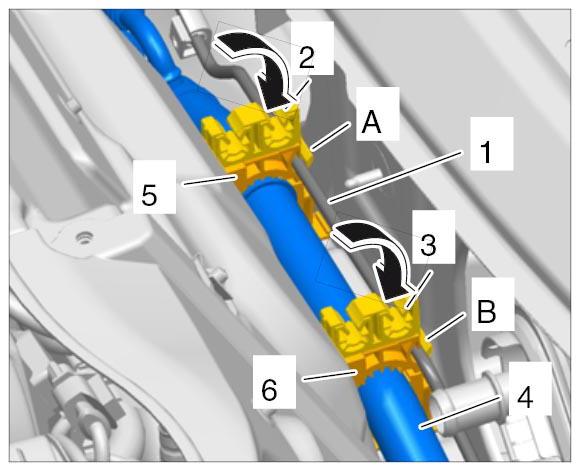

Clip refrigerant lines into the holders in the plenum panel.

Fig 3: Removing Refrigerant Line Holders In Plenum Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 5.1. Insert refrigerant line -4- into the lower parts of the holders -5, 6- .
2. 5.2. Close upper parts of holders -2, 3- (-arrows- ) and clip them in.
3. 5.3. Clip vacuum line -1- into the upper parts of the holders -2, 3- .

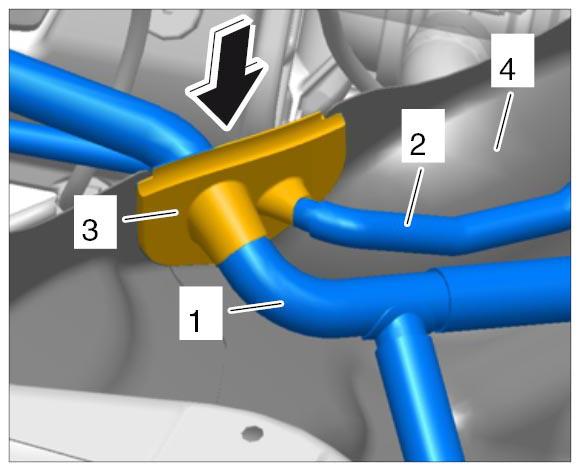

Insert the refrigerant lines -1, 2- together with the rubber boot -3- from above -arrow- into the bulkhead -4- .
Check that the rubber boot -3- is seated correctly.

Fig 4: Installing Rubber Boot On Refrigerant Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

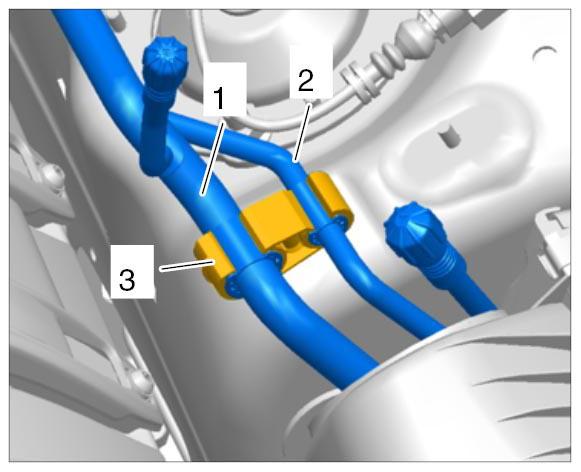

Clip refrigerant lines -1, 2- into the holder -3- on the left wheel housing.

Fig 5: Identifying Refrigerant Line Holder On Left Wheel Housing With Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

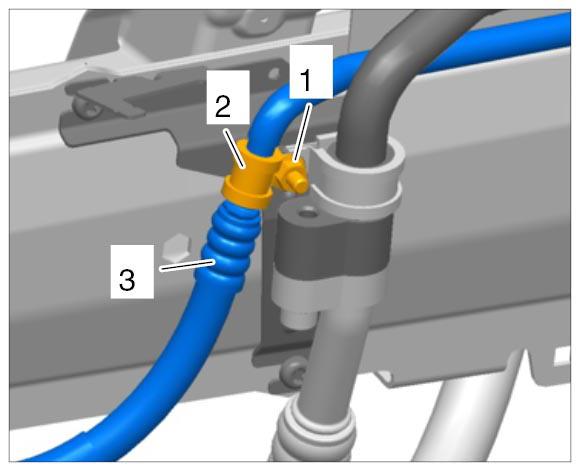

Position refrigerant line -3- with the holder -2- at the front and fit the fastening nut -1- .

Fig 6: Identifying Front Refrigerant Line Holder With Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

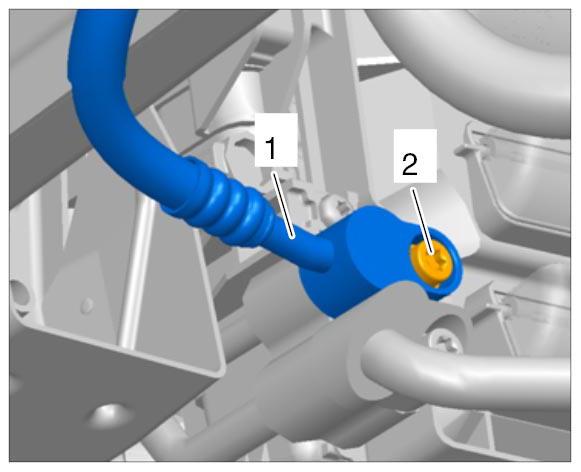

Fit the top refrigerant line -1- on the condenser.
Check that the guide sleeve is seated correctly.

Tighten the fastening screw -2- securing the refrigerant line -1- to the condenser to → Tightening torque: 12 Nm (9 ftlb.) .

Fig 7: Identifying Refrigerant Line Screws - Condenser
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the refrigerant line from the compressor to the connection point. → 874519 REMOVING AND INSTALLING COMPRESSOR/EVAPORATOR LINE
