Removing Air-Conditioning Compressor/Condenser Line

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Refrigerant

Danger of freezing

→ Avoid contact with refrigerant.

→ Wear personal protective gear.

→ Observe the safety regulations for working on air-conditioned vehicles and dealing with refrigerant.

→ Observe the safety regulations for extraction and filling systems.

→ Observe the instructions for repairing air conditioning systems and storing spare parts.

Remove the refrigerant lines at the compressor.

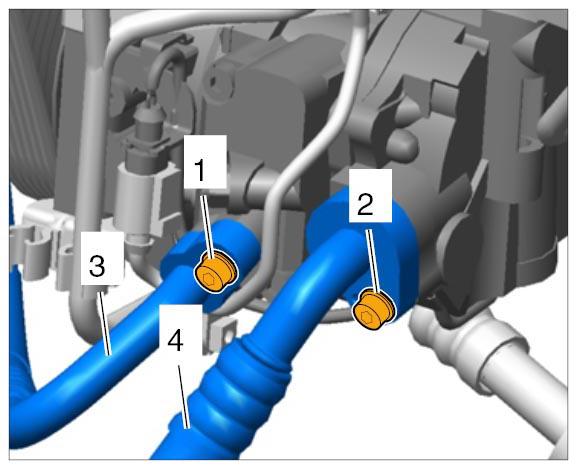

Fig 1: Identifying Refrigerant Lines On Air-Conditioning Compressor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Loosen the fastening screws -1- for the refrigerant lines -3- .
2. 1.2. Pull out the line -3- at the air-conditioning compressor and close off the connections with suitable stoppers.
Remove the line -1- from the air-conditioning compressor to the condenser -2- .

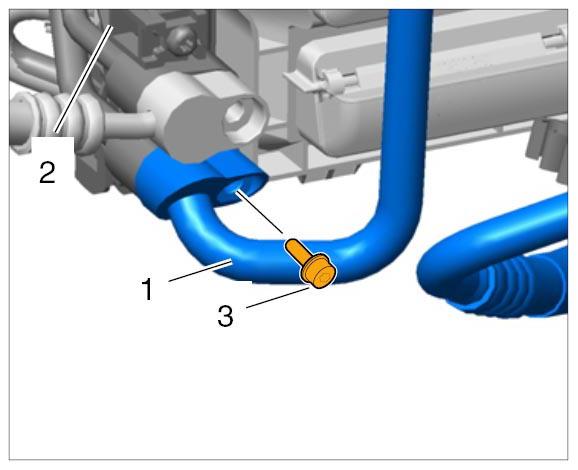

Fig 2: Identifying Line From Air-Conditioning Compressor To Condenser
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. To do this, unscrew the fastening screw -3- for the line -1- at the condenser -2- .
