Installing Air-Conditioning Compressor/Condenser Line

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Fill level too low

Risk of damage to components.

→ Do not start the engine.

→ Do not tow the vehicle.

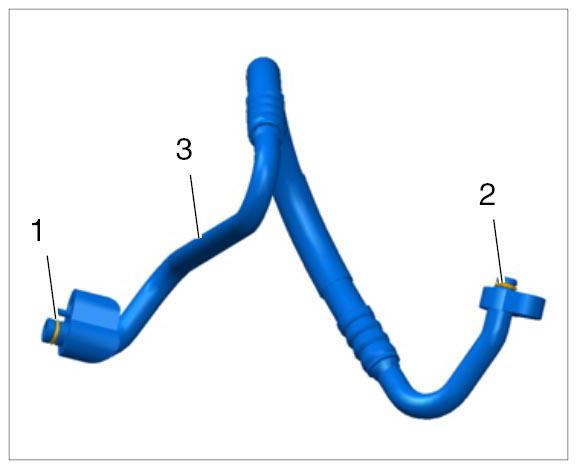

Replace the sealing rings -1, 2- on the coolant line -3- from the air-conditioning compressor to the condenser.

Fig 1: Identifying Sealing Rings On Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the coolant line -1- from the air-conditioning compressor to the condenser -2- .
Make sure that the guide pin at the connection point fits into the mounting for the refrigerant line.

Fig 2: Identifying Line From Air-Conditioning Compressor To Condenser
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

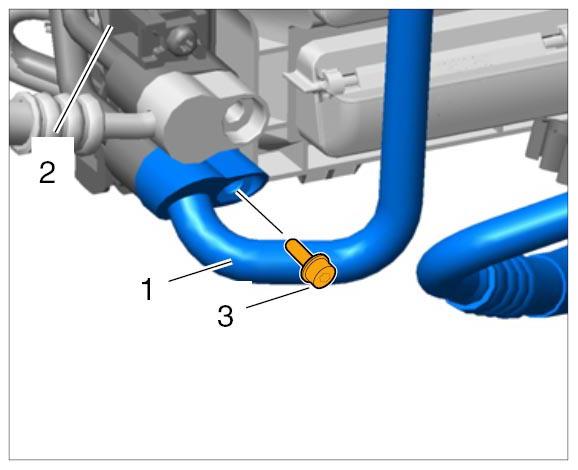

1. 2.1. Position the refrigerant line -1- on the condenser -2- and fit the fastening screw -3- . → Tightening torque: 12 Nm (9 ftlb.)
Position the refrigerant line on the air-conditioning compressor.
Make sure that the guide pin on the air-conditioning compressor fits into the mounting for the refrigerant line.

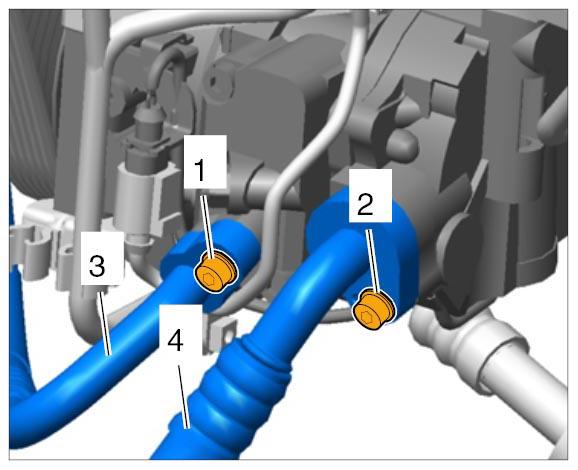

Fit the fastening screws -1- for the refrigerant lines -3- . → Tightening torque: 20 Nm (15 ftlb.) .
