Installing Electric Air-Conditioning Compressor: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Clamp the high-pressure refrigerant line -6- under the longitudinal member -Z- for installing the air-conditioning compressor.

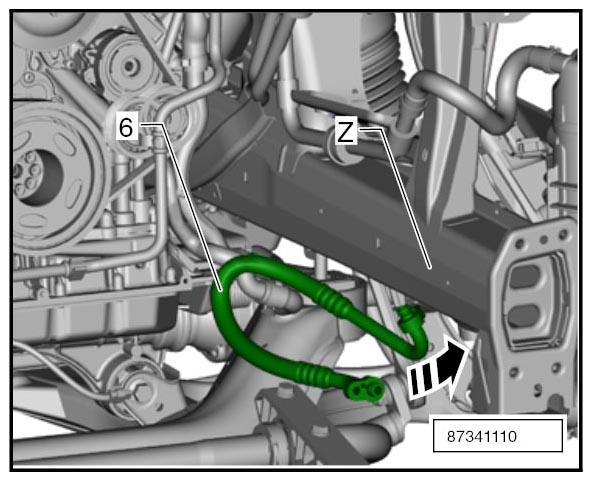

Fig 1: Removing High-Pressure Line Under Longitudinal Member
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install electric air-conditioning compressor.
1. 2.1. Pre-position the air-conditioning compressor with the rear side first and turned approx. 90 degrees to the right.

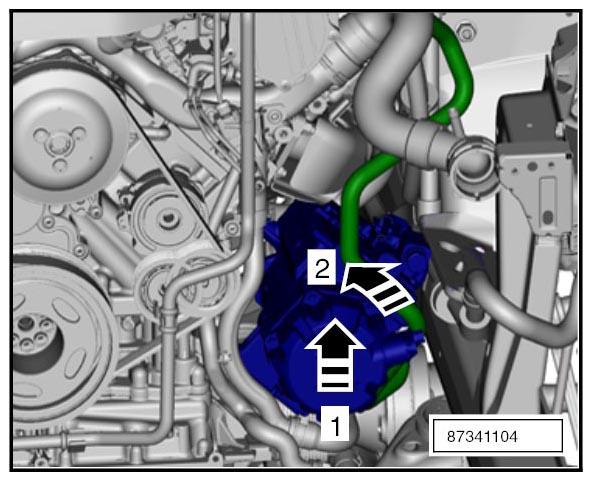

  Fig 2: Installing Electric Air-Conditioning Compressor
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lower the air-conditioning compressor at the front and turn it slightly to the left. Guide the air-conditioning compressor to the rear onto the engine and position it.

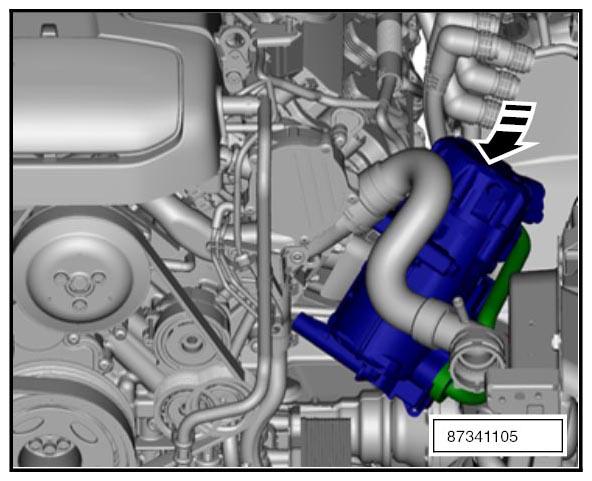

Fig 3: Guiding Air-Conditioning Compressor To Rear Onto Engine
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit and screw in the top front M8 fastening screw -10- used to secure the electric air-conditioning compressor to the engine bracket. Do not tighten the screw yet .

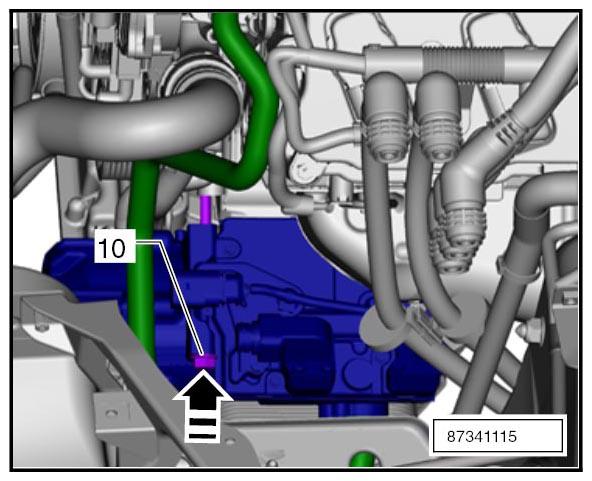

Fig 4: Identifying Air-Conditioning Compressor To Engine Screw (Top)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten the bottom front M8 fastening screw -8- used to secure the electric air-conditioning compressor to the engine to the prescribed tightening torque. Tightening torque 25 Nm (19 ftlb.)
For easier access to the screw, press the hose -9- down slightly with the tool.

Accessible via front left wheel housing.

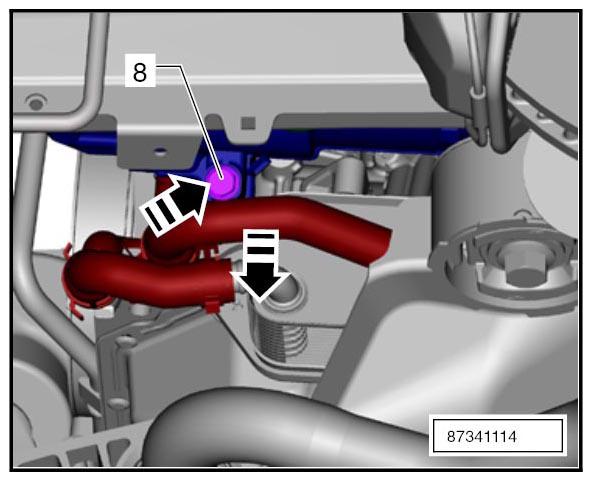

Fig 5: Identifying Air-Conditioning Compressor To Engine Screw (Bottom Front)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten the bottom rear M8 fastening screw -7- used to secure the electric air-conditioning compressor to the engine to the prescribed tightening torque. Tightening torque 25 Nm (19 ftlb.)
Accessible via front left wheel housing.

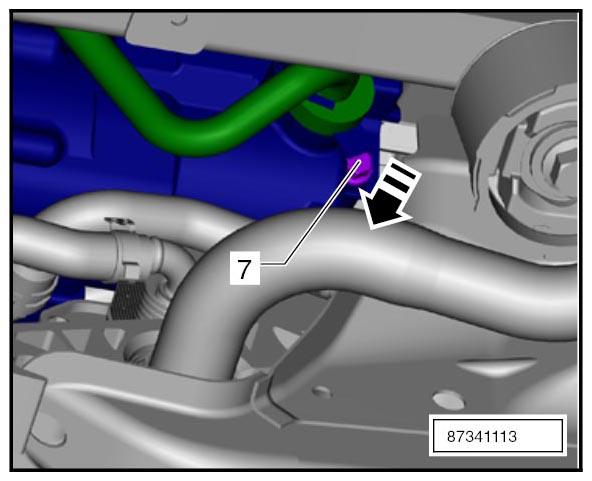

Fig 6: Identifying Air-Conditioning Compressor To Engine Screw (Bottom Rear)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten the top front M8 fastening screw -10- used to secure the electric air-conditioning compressor to the engine bracket to the prescribed tightening torque. Tightening torque 25 Nm (19 ftlb.)

Fig 7: Identifying Air-Conditioning Compressor To Engine Screw (Top)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure the high-pressure refrigerant line to the electric air-conditioning compressor.
1. 8.1. Remove stoppers.
2. 8.2. Replace O-ring and coat with refrigerant oil.
3. 8.3. Tighten M8 fastening screw -5- used to secure the high-pressure refrigerant line -6- to the electric air-conditioning compressor to the prescribed tightening torque. Tightening torque 20 Nm (15 ftlb.) +/-3 Nm (+/-2 ftlb.)

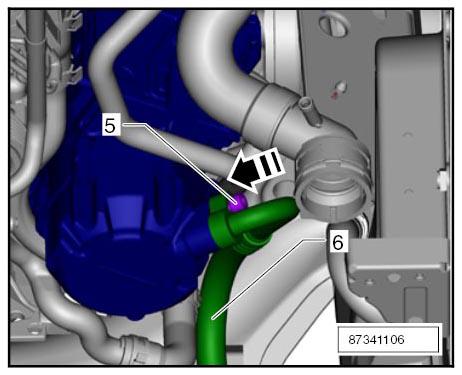

  Fig 8: Installing High-Pressure Air-Conditioning Line On Air-Conditioning Compressor
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect low-pressure refrigerant line at the connection point in the engine compartment and secure it.
1. 9.1. Remove stoppers.
2. 9.2. Replace O-ring and coat with refrigerant oil.
3. 9.3. Tighten M8 fastening screw -3- used to secure the low-pressure refrigerant line to the low-pressure refrigerant line at the connection point in the engine compartment to the prescribed tightening torque. Tightening torque 12 Nm (9 ftlb) +/-1.5 Nm (+/-1 ftlb.)
  Counter at the low-pressure refrigerant line connection point using an open-ended wrench (a/f 22).

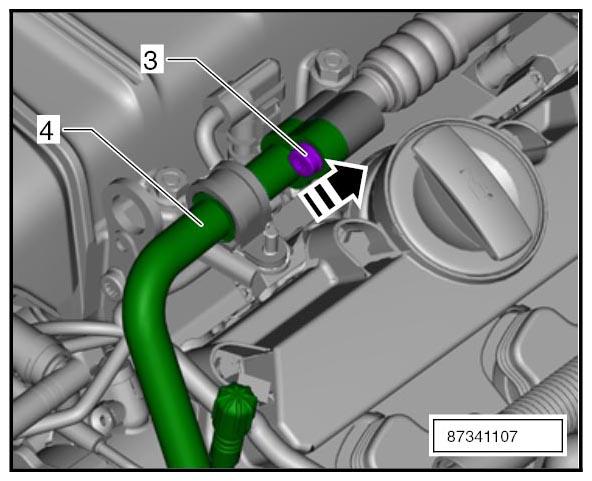

  Fig 9: Connection Point For Low-Pressure Air-Conditioning Line In Engine Compartment
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close the holding clamp on the low-pressure refrigerant line -2- and tighten M6 fastening nut -1- to the prescribed tightening torque. Tightening torque 8 Nm (6 ftlb.)

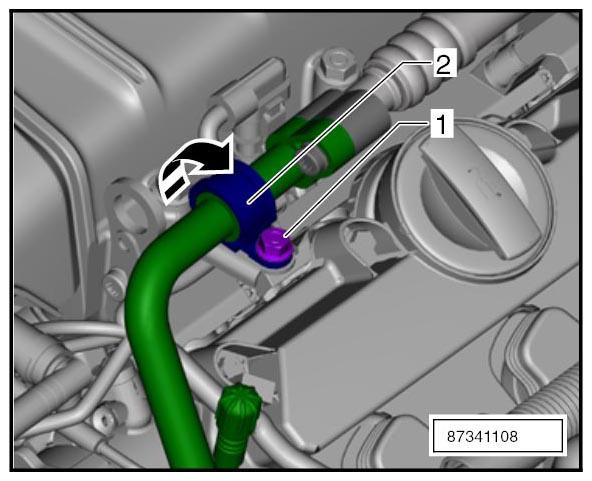

Fig 10: Holding Clamp On Low-Pressure Air-Conditioning Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure refrigerant line from evaporator to the low-pressure refrigerant line.
1. 11.1. Remove stoppers.
2. 11.2. Replace O-ring and coat with refrigerant oil.
3. 11.3. Tighten fastening screw -3- used to secure the refrigerant line from the evaporator (chiller) -1- to the low-pressure refrigerant line -2- to the prescribed tightening torque. Tightening torque 12 Nm (9 ftlb.) +/-1.5 Nm (+/-1 ftlb.)

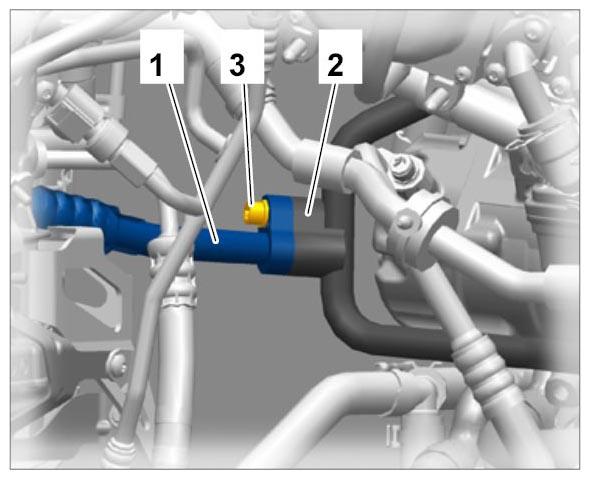

  Fig 11: Identifying Refrigerant Line From Evaporator On Low-Pressure Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in electric connector for the air-conditioning compressor until it engages securely.

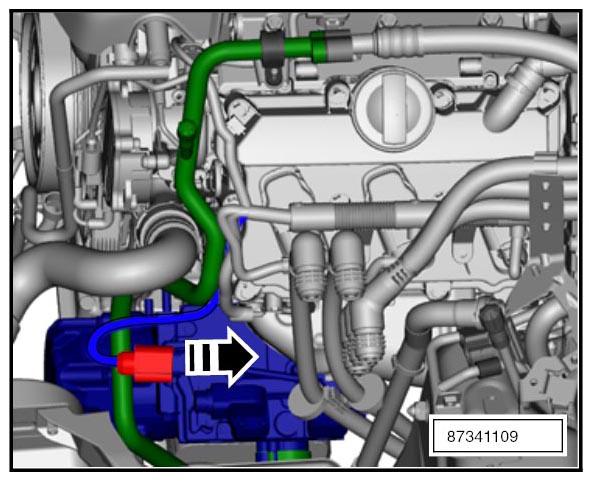

Fig 12: Plugging In Electric Connector For Air-Conditioning Compressor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
