Installing Air Quality Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. The air quality sensor is installed in reverse order to removal.
  2. Insert water drip pan -2-  and tighten fastening screw -1-  to the prescribed tightening torque. Tightening torque 8 Nm (6 ftlb.)

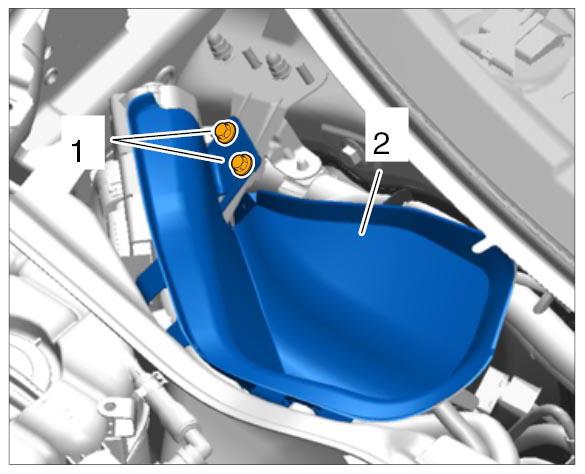

    Fig 1: Identifying Water Drip Pan With Screws
    G09941494Courtesy of PORSCHE CARS NORTH AMERICA, INC.
