Component Information

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The servo motors for the air conditioning system are described in individual service information. This information merely provides an overview of the installation positions of the installed servo motors.

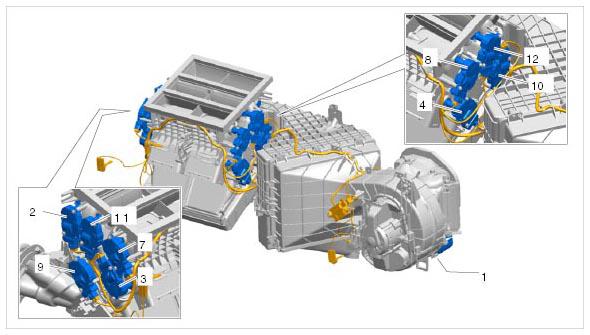

Fig 1: Identifying Servo Motors Installation Position
G09941488Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 1  - Servo motor for fresh air/recirculated air
  2. 2  - Servo motor for defroster
  3. 3  - Servo motor for front left footwell
  4. 4  - Servo motor for front right footwell
  5. 7  - Servo motor for left center vent
  6. 8  - Servo motor for right center vent
  7. 9  - Servo motor for front left temperature valve
  8. 10  - Servo motor for front right temperature valve
  9. 11  - Servo motor for left side air vent
  10. 12  - Servo motor for right side air vent

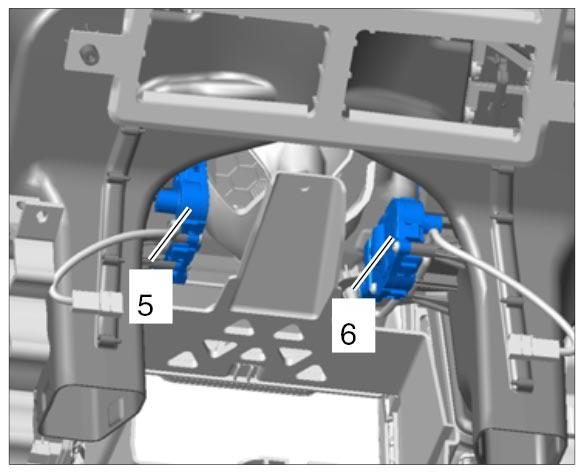

Fig 2: Identifying Servo Motors In Dashboard Installation Position
G09941489Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 5  - Servo motor for top left center vent
  2. 6  - Servo motor for top right center vent
