Removing Servo Motor For Top Left Centre Vent

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

Information

The fresh-air flaps must be closed.

Before starting work, adjust the ventilation regulator so that the center vent is closed .

Information

The linkage must remain on the servo motor during removal. Mark the position of the linkage on the servo motor.

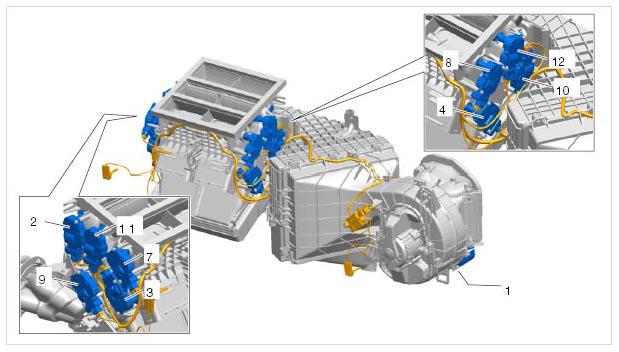

Fig 1: Identifying Servo Motors Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1 - Servo motor for fresh air/recirculated air
2 - Servo motor for defroster
3 - Servo motor for front left footwell
4 - Servo motor for front right footwell
7 - Servo motor for left center vent
8 - Servo motor for right center vent
9 - Servo motor for front left temperature valve
10 - Servo motor for front right temperature valve
11 - Servo motor for left side vent
12 - Servo motor for right side vent

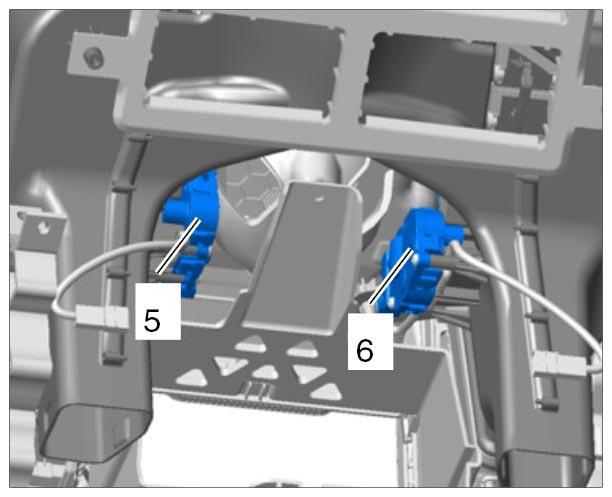

Fig 2: Identifying Servo Motors In Dashboard Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

5 - Servo motor for top left center vent
6 - Servo motor for top right center vent

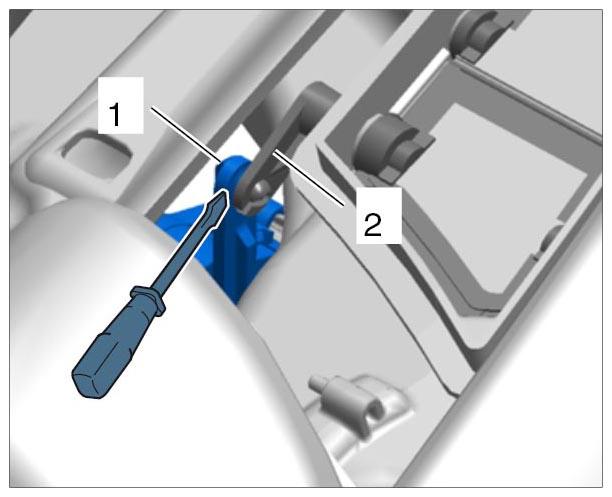

Unclip servo motor linkage -1- from the adjustment flap linkage -2- using a screwdriver.

Fig 3: Disconnecting Servo Motor Linkage
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

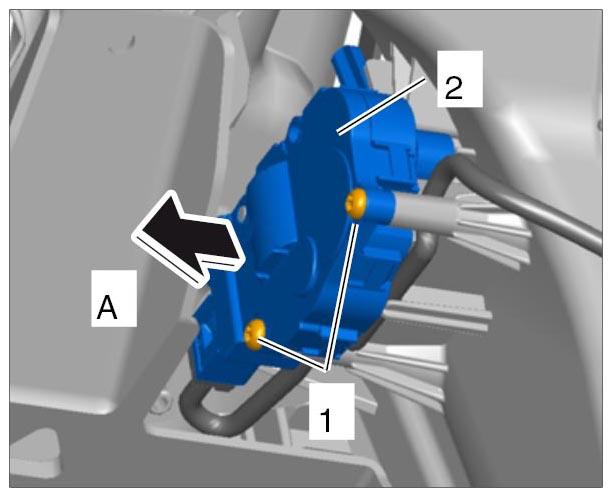

Unscrew two fastening screws -1- on the servo motor -2- .

Fig 4: Removing Servo Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove servo motor -2- with linkage -A- and mark the installation position of the linkage on the servo motor.

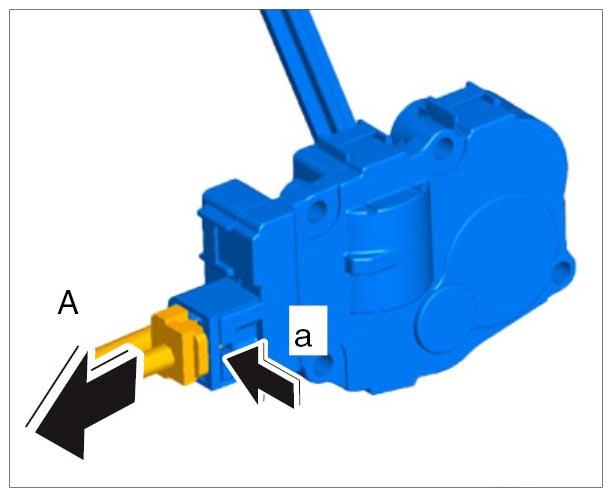

Release electric plug connection -a- and pull it off -A- .

Fig 5: Disconnecting Connector From Servo Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
