Removing Servo Motor For Left Side Air Vent

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

Detach bracket -3- for front-end electronics control unit. The control unit remains attached to the bracket.

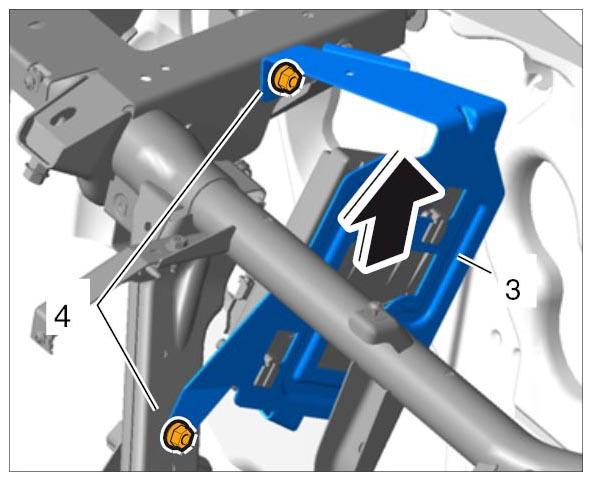

Fig 1: Detaching Bracket For Front-End Electronics Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Unscrew two fastening screws -4- .
2. 1.2. Lift bracket -3- up and remove it -arrow- .
Before removing the servo motor, mark the position of the air flap on the housing.

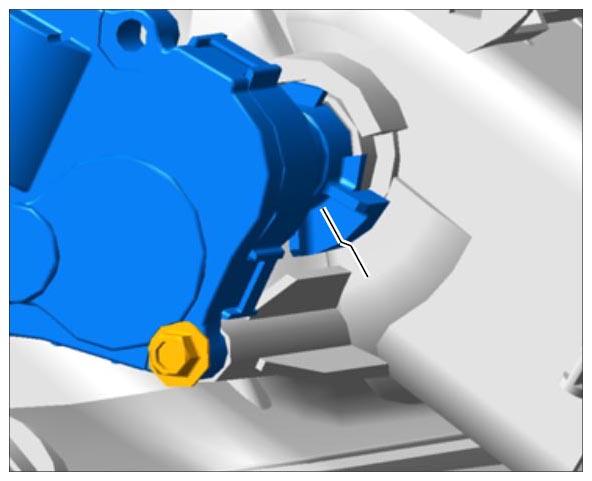

Fig 2: Identifying Servo Motor With Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew two fastening screws -2- on the servo motor -1- .

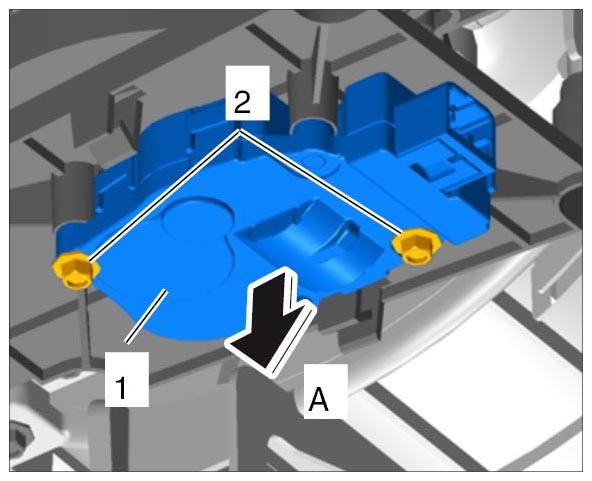

Fig 3: Removing Servo Motor For Left Side Air Vent
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove servo motor for left side air vent -1- (-A- ).
Release electric plug connection -a- and disconnect it -A- .

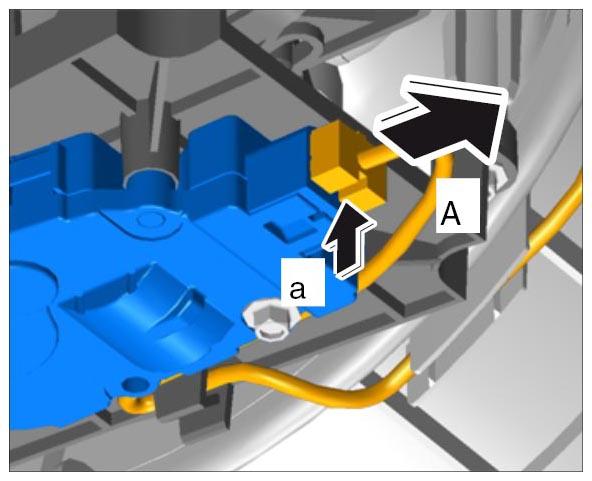

Fig 4: Disconnecting Connector On Servo Motor For Left Side Air Vent
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
