Installing Servo Motor For Defroster

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. The servo motor is installed in reverse order to removal.
  2. Set air flap to the marked position.
  3. Tighten two fastening screws on the servo motor to → Tightening torque: 1.2 Nm (1 ftlb.)  .
  4. Tighten two fastening screws on the bracket for the front-end electronics control unit to → Tightening torque: 8 Nm (6 ftlb.)  .

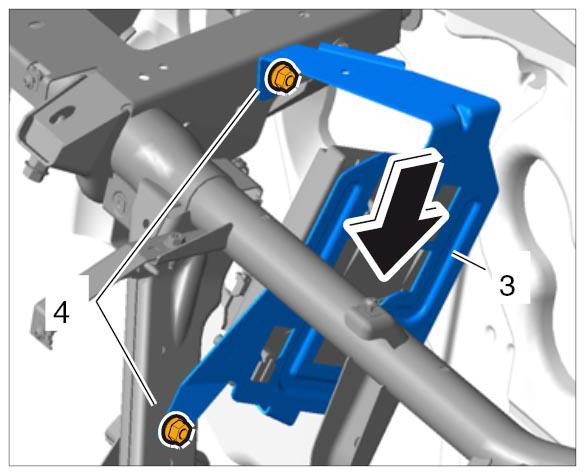

    Fig 1: Identifying Fastening Screws On Bracket For Front-End Electronics Control Unit
    G09941397Courtesy of PORSCHE CARS NORTH AMERICA, INC.
