High Pressure In Refrigerant Circuit Depending On Outside Temperature - 4-Zone Air Conditioning

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

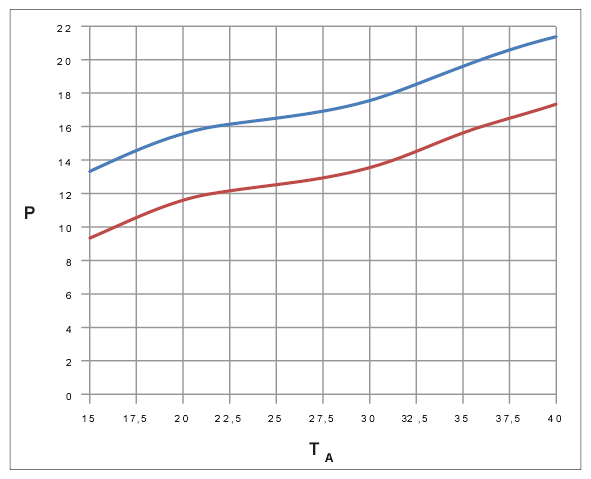

Fig 1: High Pressure In Refrigerant Circuit Graph
G09941383Courtesy of PORSCHE CARS NORTH AMERICA, INC.

blue  - Upper limit

red  - Lower limit

TA  - Outside temperature (°C)

p  - High pressure in refrigerant circuit (bar)
