Removing Charging Socket

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

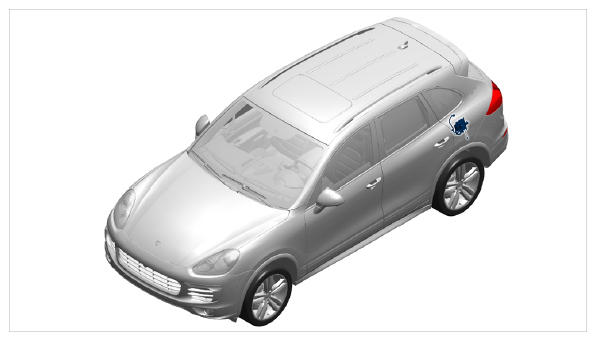

Fig 1: Identifying Charging Socket Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

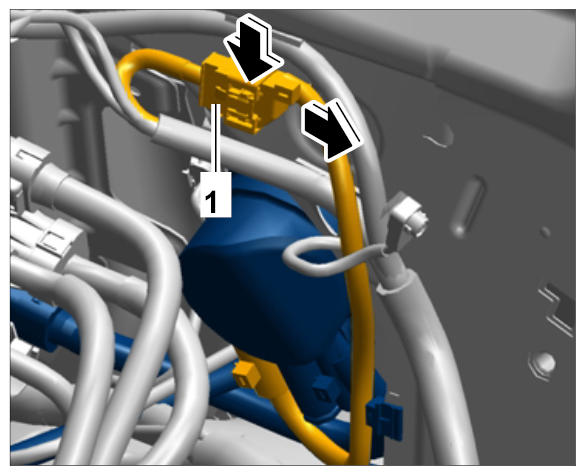

Release and disconnect electric plug connection -1- and unclip it from the body.

Fig 2: Disconnecting Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

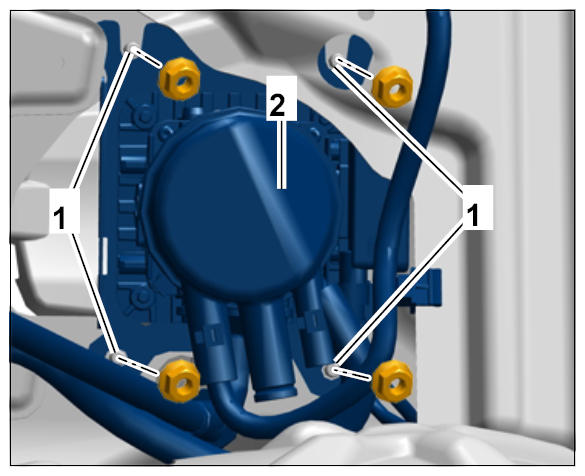

Unscrew fastening nuts -1- on charging socket -2- .

Fig 3: Loosening Charging Socket Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

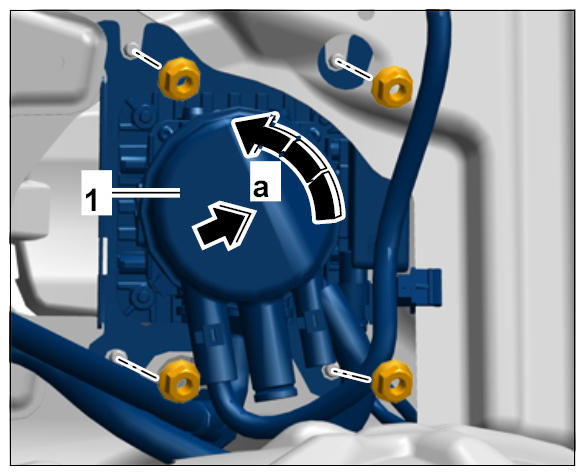

Remove charging socket -1- by carefully turning it anti-clockwise -a- .

Fig 4: Removing Charging Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

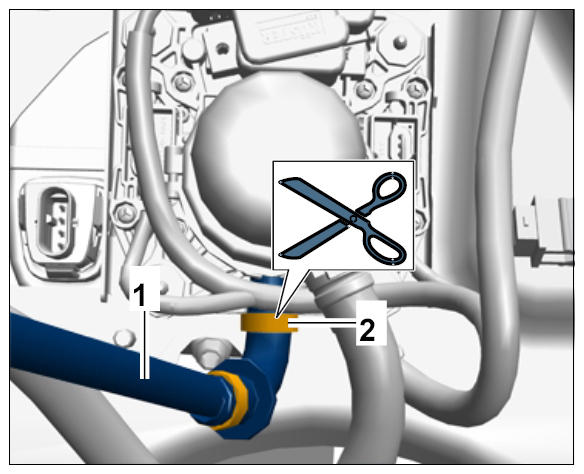

Cut tie-wrap -2- and pull water drain -1- off the charging socket.

Fig 5: Pulling Water Drain
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
