Removing Service Disconnector

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Unclip service disconnector.

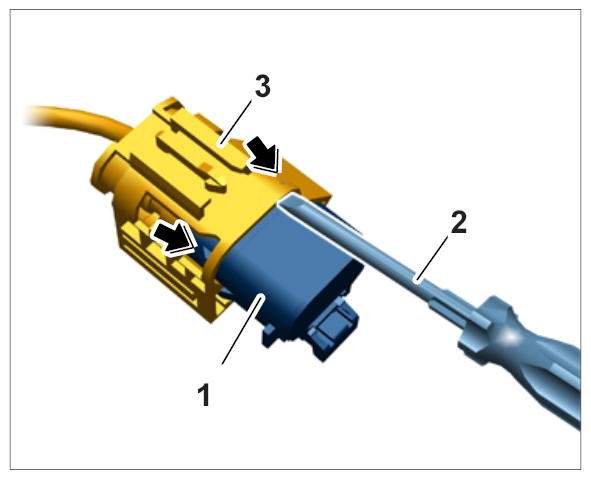

Detach cover -1- using a small screwdriver -2- and remove it from the green housing -3- .

Fig 1: Detaching Service Disconnector Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen fabric adhesive tape on the cable at the end of the connector and cut it off.

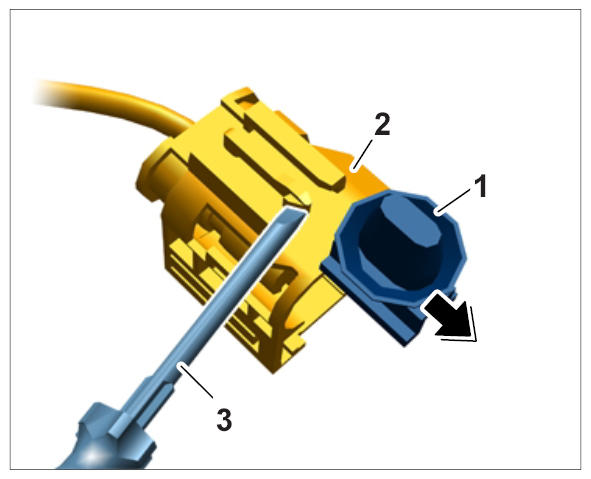

Release secondary lock using a small screwdriver.

Fig 2: Releasing Secondary Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

CAUTION: Risk of damage to locking lugs

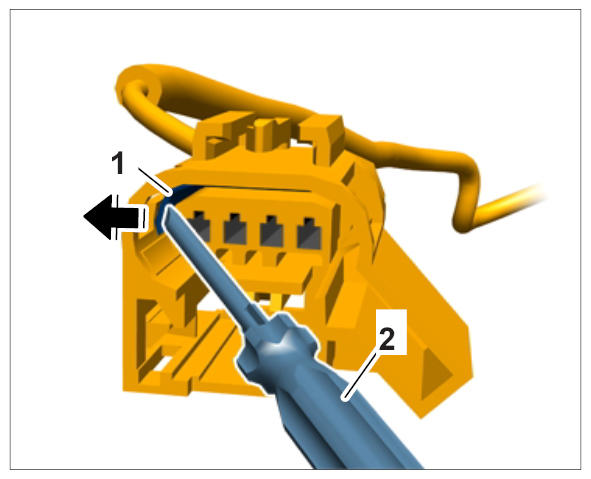

Release pins -1- using press-out tool VAS 1978/35-2 -2- and pull them out carefully at the cable -3- .

Fig 3: Pressing Pilot Lines Connector Pins
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

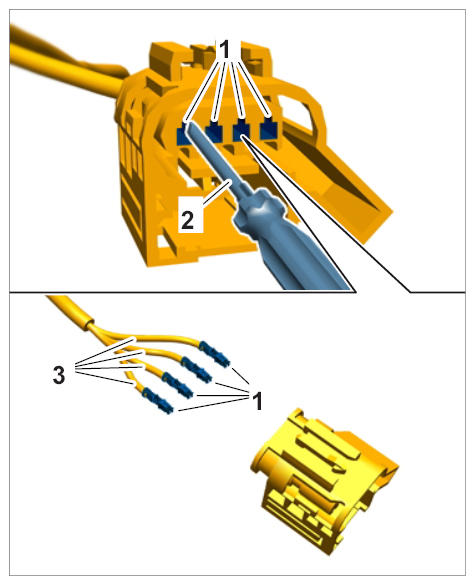

Release and pull off clips -1- on the old connector -2- using a thin screwdriver -3- .

Fig 4: Removing Pilot Lines Connector Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
