Installing Service Disconnector

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Prepare new service disconnector for installation.

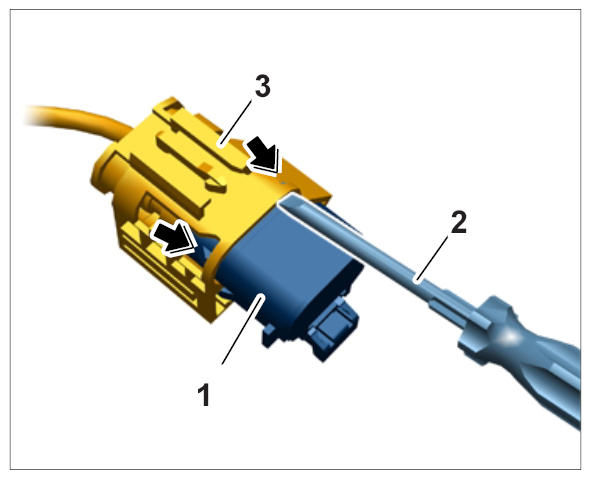

1. 1.1. Release and pull off cover -1- on the new service disconnector -3- using a small screwdriver -2- .

  Fig 1: Installing Service Disconnector Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Secure clips -1- on the new service disconnector -2- .

  Fig 2: Securing Service Disconnector Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

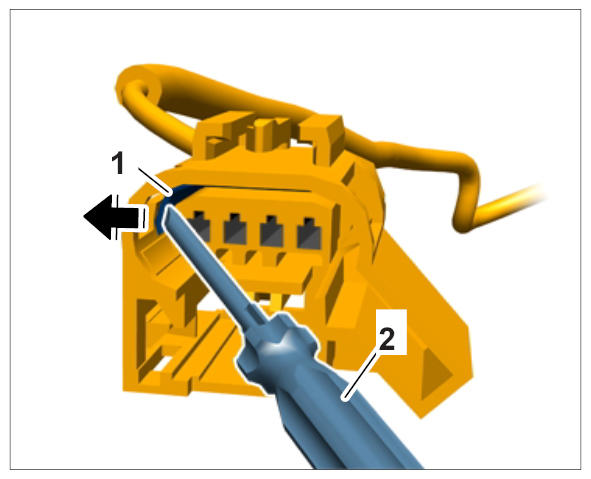

3. 1.3. Release secondary lock on the new service disconnector using a small screwdriver.

  Fig 3: Releasing Secondary Lock
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Information

Check that the pins (upper locking lugs) are aligned correctly

If the locking lugs do not lock with an audible click, bend up the locking lugs at the pin first using press-out tool
Press in pins in the following sequence until they engage securely.
1. 2.1. Red/lilac cable in pin 1
2. 2.2. Red/yellow cable in pin 2
3. 2.3. Green/black cable in pin 3
4. 2.4. Yellow/black cable in pin 4
Close secondary lock.
Fit black cap on the green connector until it engages securely on both sides.
Wrap new fabric tape around the cable.
Clip in service disconnector at the same position as before.
