Installing Control Unit For HV Battery

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: High voltage at the E-box

Danger of electric shock from live parts
Risk of serious burns or death

→ Work on the HV battery control unit may only be carried out by a high-voltage technician.

→ Always use insulated tools when working on the HV battery control unit.

→ Observe general warning notes for working on the high-voltage vehicle electrical system.

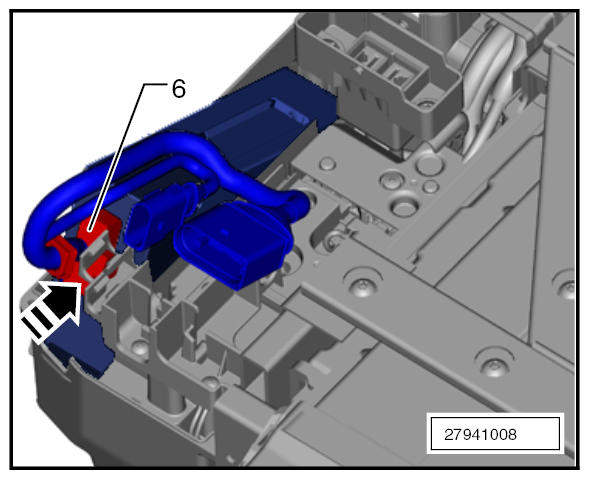

Plug in electric connector -6- with the HV battery wire harness at the control unit until the connector engages securely.

Fig 1: Installing HV Battery Control Unit And Electric Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

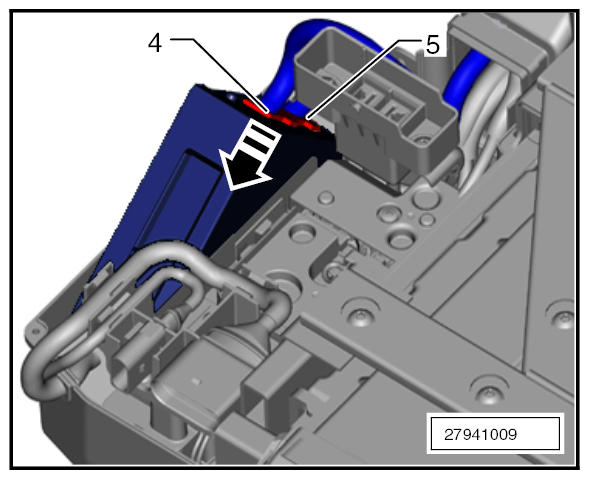

Insert the HV battery control unit into the E-box and plug in both connectors -4- and -5- until they engage securely.

Fig 2: Installing HV Battery Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position HV battery control unit in the E-box.
Secure the ground strap (cable shoe) to the HV battery control unit in the E-box.

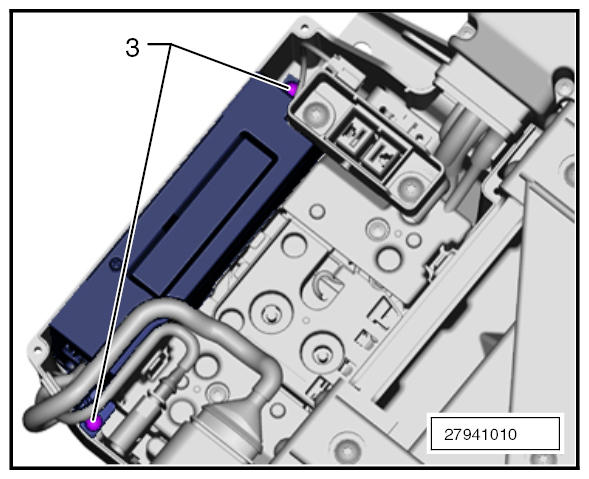

1. 4.1. Secure the HV battery control unit and ground strap using the two fastening screws -3- and the TORX Screwdriver Set VAS 6633 WE 1382 .

  Fig 3: Securing HV Battery Control Unit
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

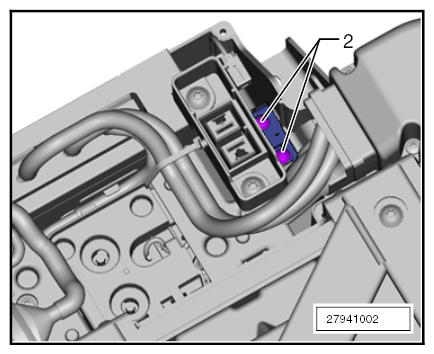

Secure the service disconnector mounting with the two fastening screws -2- .

Fig 4: Identifying Service Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

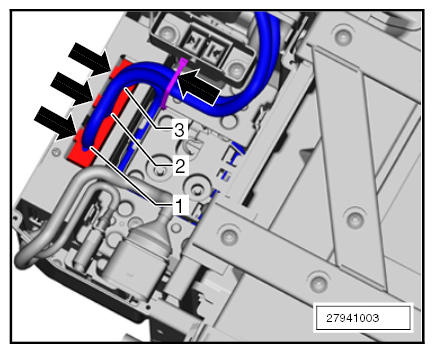

Plug electric connectors -1, 2, 3- into the HV battery control unit until the connectors engage securely.

Fig 5: Installing Electric Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit tie-wrap for the electric line -arrow- .

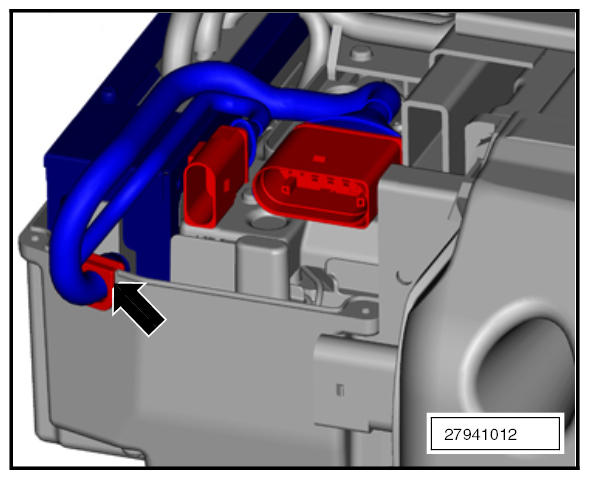

Before positioning the E-box cover, check the line routing of the HV battery wire harness from the E-box.
1. 8.1. The rubber sleeve -arrow- on the wire harness must be engaged properly in the E-box housing.

  Fig 6: Locating E-Box Wire Harness Sleeve
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

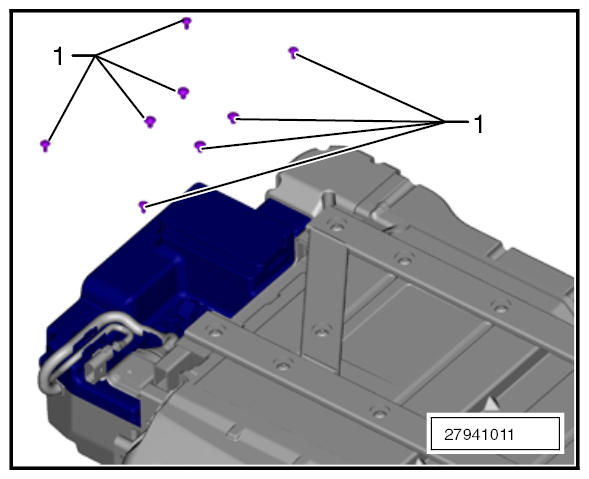

Fit E-box cover and secure with the eight fastening screws -1- .

Fig 7: Installing E-Box Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
