Removing Control Unit For Distance Measuring Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch off ignition and pull remote control out of ignition lock.
  2. Remove cover on sensor. → Removing cover

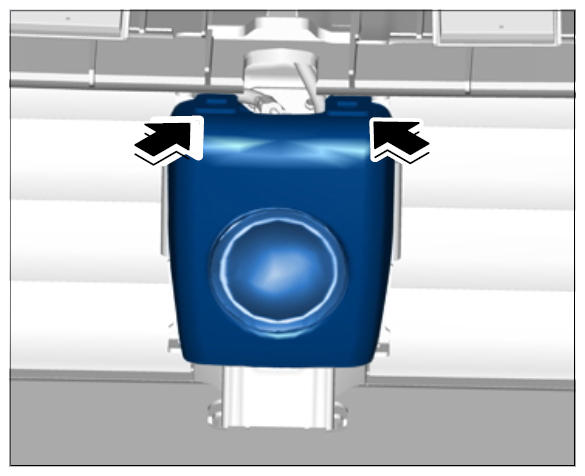

    Fig 1: Removing Cover
    G09934062Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. Release cover at the top -arrows-  .
    2. 2.2. Fold cover forward and remove it.
  3. Release electric plug connection -arrow a-  and disconnect it -arrow b-  .

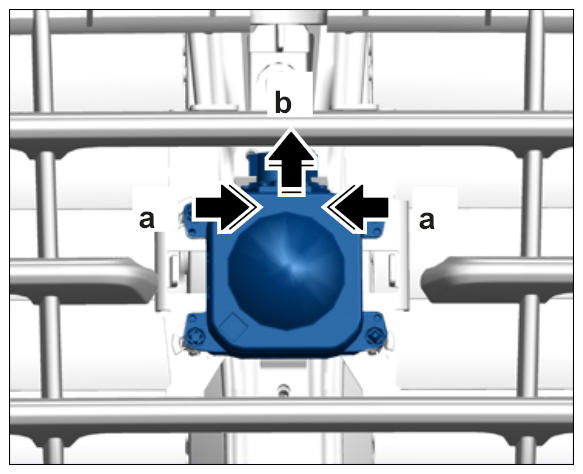

    Fig 2: Disconnecting Electric Plug Connection
    G09934063Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Unclip electric wire harness from holder for distance measuring sensor control unit.
  5. Unscrew fastening screws -1-  .

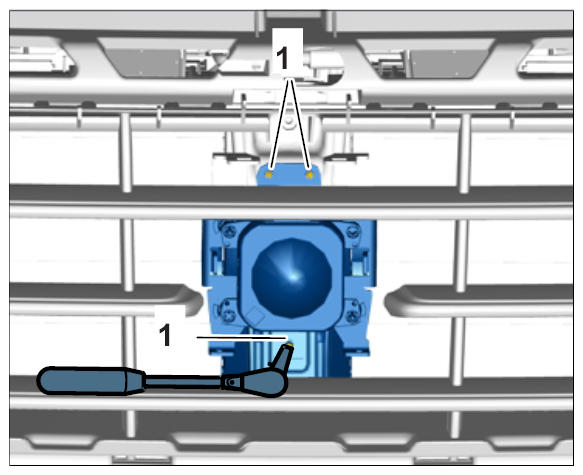

    Fig 3: Identifying Sensor Control Unit Screws
    G09934064Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Remove holder together with control unit for distance measuring sensor.
