Subsequent Work
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- Switch off ignition and remove remote control (hand-held transmitter).
- PIWIS Tester II 9818 can now be disconnected from the vehicle.
- Disconnect the battery charger.
- Remove sensors and instrument holders.
Information
Before and after fitting the trim cover for the distance measuring sensor control unit, check the following points:
- The holder for the distance measuring sensor control unit must not show any signs of deformation, which may have been caused, for example, by removing or installing the trim cover for the distance measuring sensor control unit. If the holder for the distance measuring sensor control unit is deformed, carefully push it back into shape .
- If the trim cover is damaged or cracked, replace the trim cover .
- After fitting the trim cover, check that it is seated correctly and securely .

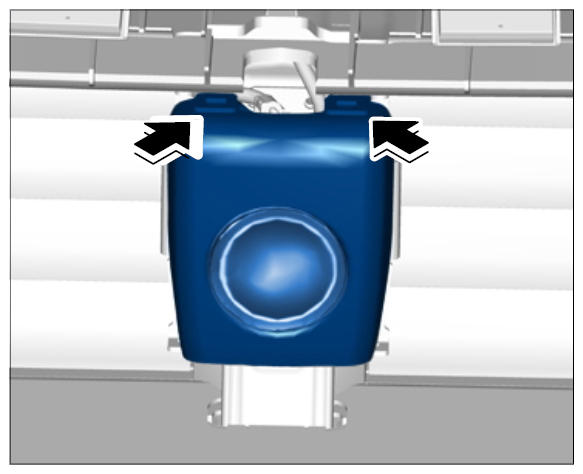

- Install cover on sensor and clip it in at the top -arrows- .
- Perform a test drive and check operation of distance measuring sensor control unit.
- Read out the fault memory of the distance measuring sensor (ACC) control unit and erase it if necessary.
