Adjusting Control Unit For Distance Measuring Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. A battery charger with a current rating of at least 40 A must be connected to the external power feed points.
  2. Connect PIWIS Tester II 9818  to the vehicle and start it.
  3. Switch on ignition.
  4. Select the required vehicle and select Adaptive Cruise Control  control unit, then press [F12] to continue.
  5. In the Adaptive Cruise Control  menu, select the Maintenance/Repairs  submenu and press [F12] to continue.
  6. Follow the instructions on the Tester and, if necessary, adjust the sensor -1-  using the adjusting tool T-Socket Wrench For ACC Sensor VAS 6190/2 WE 1364  in line with the Tester specifications.

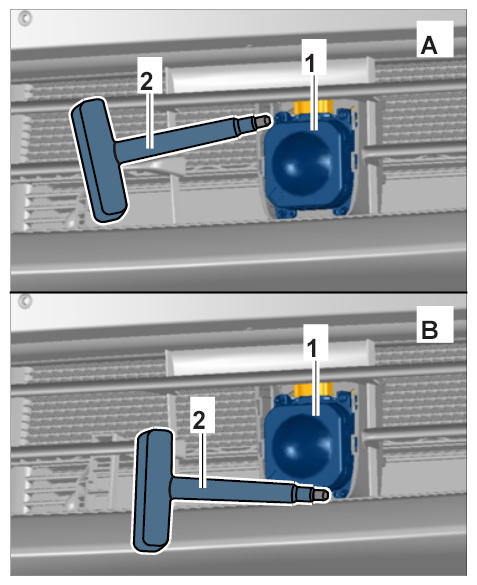

    Fig 1: Adjusting Screws For Distance Measuring Sensor
    G09934060Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. The process must be repeated until the message Adjustment Successful  is displayed on the Tester.
