Removing Starter

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Working on the vehicle electrical system

Risk of burns
Risk of short circuit or fire.

→ Disconnect the battery.

→ Prevent battery from reconnecting.

→ Cover the battery.

→ Remove ground terminal and cover the terminals.

→ Route electric lines without tensile strength.

→ Secure electric lines to existing lines/components.

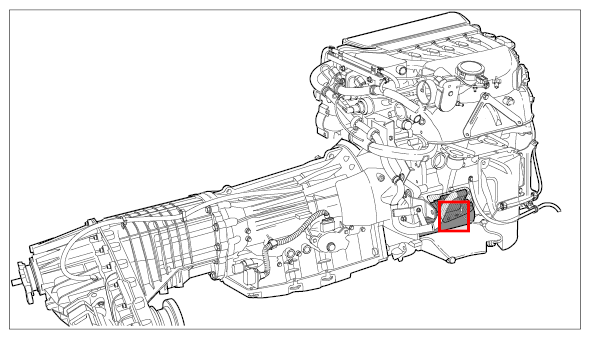

Fig 1: Overview Of Starter

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

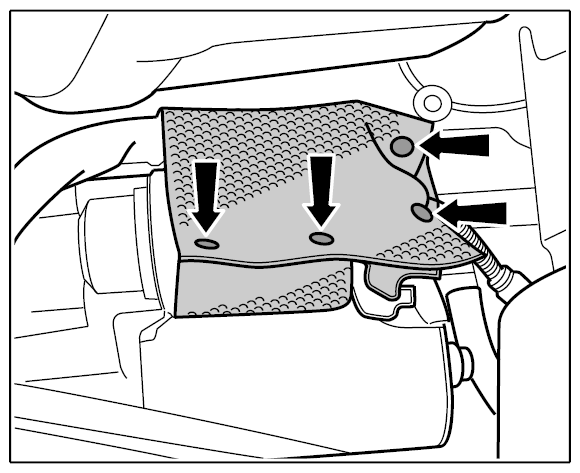

Open the press-studs -arrow- and remove the heat protection cover on the solenoid switch.

Fig 2: Identifying Press Studs For Heat Insulation Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

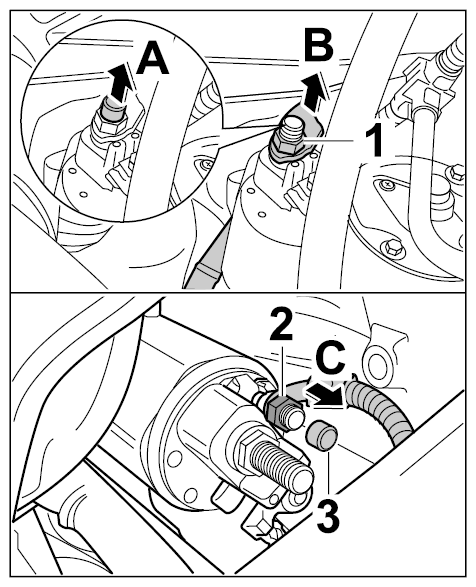

Pull off protection cap -A- .
Screw off the fastening nut -1- and remove the line from the threaded bolt -B- .
Pull off protection cap -3- (-C- ).
Screw off the fastening nut -2- and remove the line from the threaded bolt -C- .

Fig 3: Disconnecting Lines On Starter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

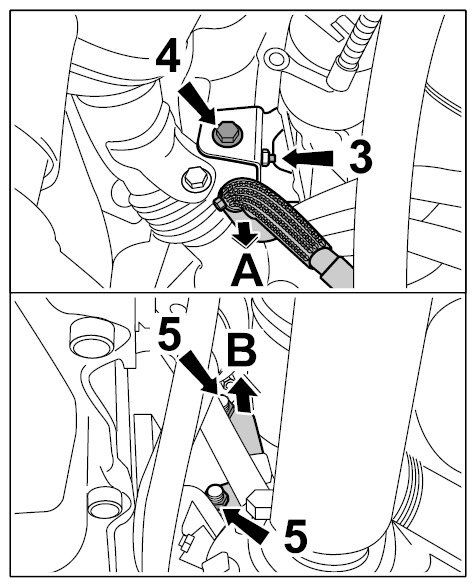

Unscrew the fastening screw -3- and pull line bracket away in a downward direction -A- .
Unscrew the fastening screw -4- .
Screw off the fastening nuts -5- and remove the holder -B- . To do this, turn the holder slightly if necessary.

Fig 4: Identifying Starter Fasteners
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

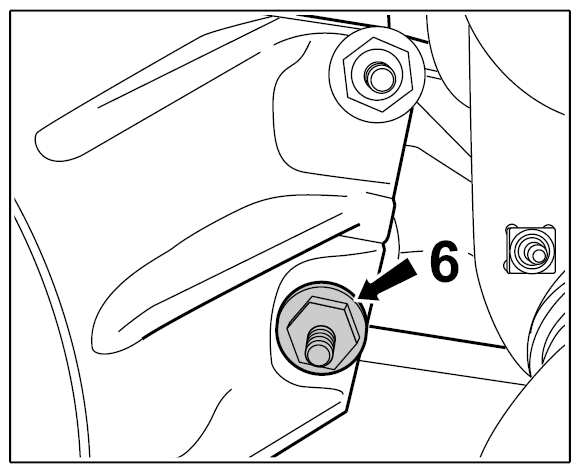

Unscrew the fastening screw -6- on the transmission side of the starter.

Fig 5: Fastening Screw For Starter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

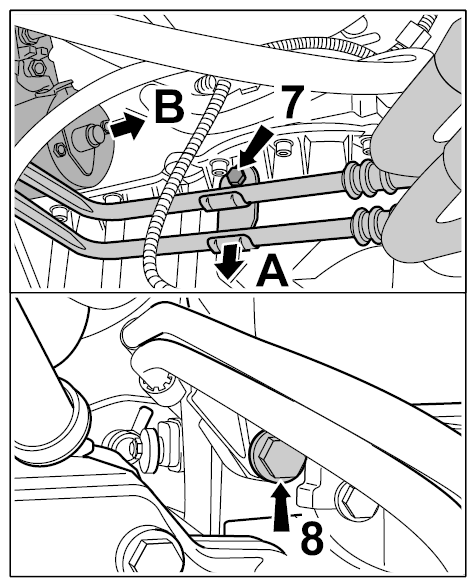

Unscrew the fastening screw -7- .
Unscrew the lower fastening screw -8- on the starter.
Pull the line carefully downwards -A- and remove the starter -B- . Turn the starter if necessary.

Fig 6: Removing Starter
