Installing Starter

Information

• Before installing the starter, check the smooth operation of the thread for securing the starter. Threads that do not open/close smoothly must be repaired before installing the starter  .

1. Pull the line carefully downwards -A-  and insert the starter -B-  . Turn the starter if necessary -C-  .

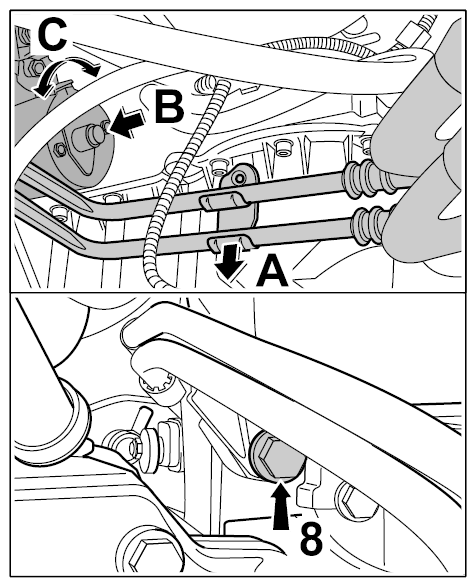

   Fig 1: Inserting Starter

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Lift the starter forwards and screw in fastening screw -8-  but do not tighten it.
3. Screw in the fastening screw -6-  on the transmission side and tighten the two fastening screws on the starter. → Tightening Torque: 75 Nm (56 ft. lb.)  , → Tightening Torque: 75 Nm (56 ft. lb.)

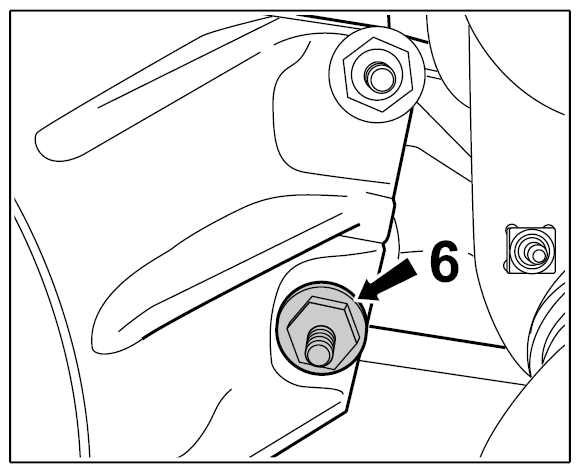

   Fig 2: Identifying Fastening Screw For Starter

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Insert the holder -A-  and screw on the fastening nuts -5-  , but do not tighten them.
5. Screw in and tighten the fastening screw -4-  , then tighten the fastening nuts -5-  .
6. Place the protective tube in installation position -B-  and secure with the fastening screw -3-  .

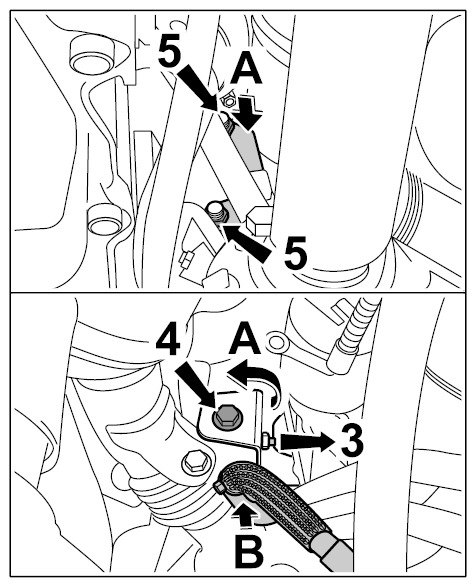

   Fig 3: Identifying Starter Fasteners

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Connect the line to the threaded bolt -A-  and secure with the fastening nut -2-  . → Tightening Torque: 8 Nm (6 ft. lb.)
8. Fit protection cap -3-  (-A-  ).
9. Connect the line to the B+ connection -B-  and secure with the fastening nut -1-  . → Tightening Torque: 15 Nm (11 ft. lb.)
10. Fit protection cap on the B+ connection -C-  .

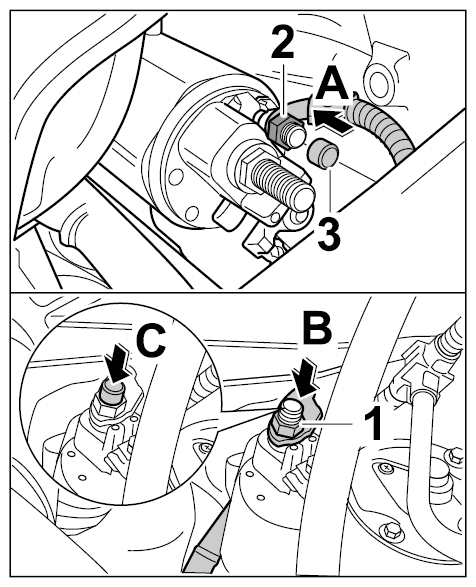

    Fig 4: Securing Lines On Starter

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
11. Place heat protection cover around solenoid switch -A-  and secure with the press-studs -B-  .

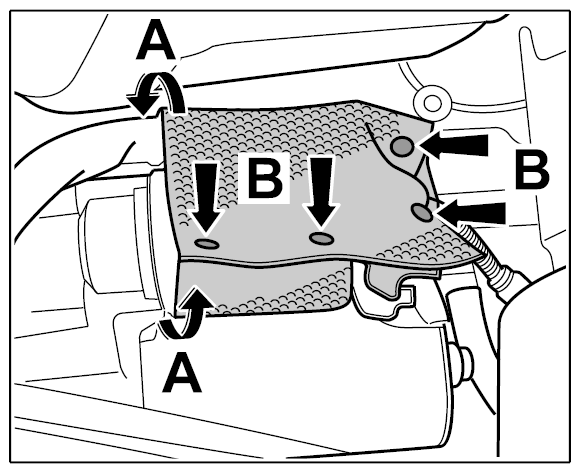

    Fig 5: Pressing Studs For Heat Insulation Cover

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
12. Secure the line with the fastening screw -7-  .

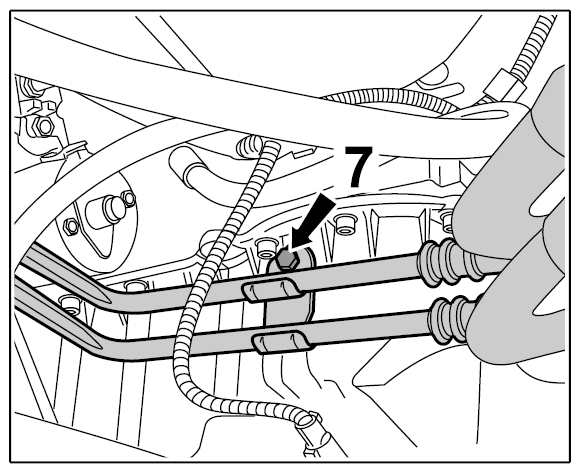

    Fig 6: Screwing Down Line
