Removing Starter

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

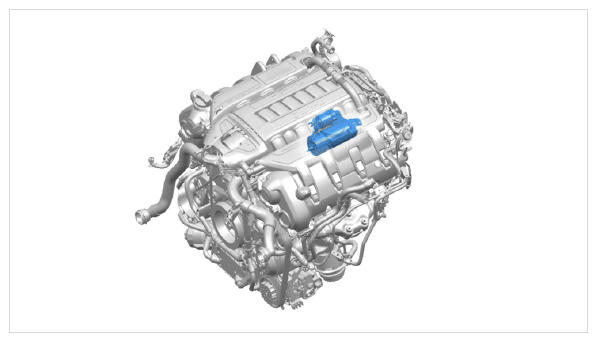

Fig 1: Installation Position Of Starter

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit

Undo electric change-over valve.
1. 1.1. Pull electric change-over valve -1- off the holder -arrow- and set it aside with the lines connected.

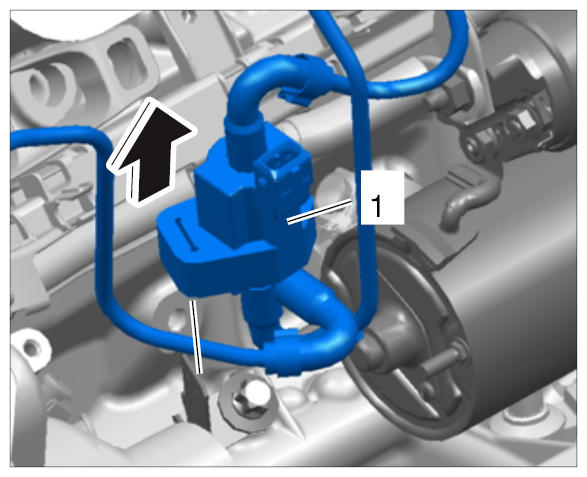

  Fig 2: Removing Electric Change-Over Valve
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening nuts -2 and 3- on the starter and remove lines -4 and 5- (-arrow- ).

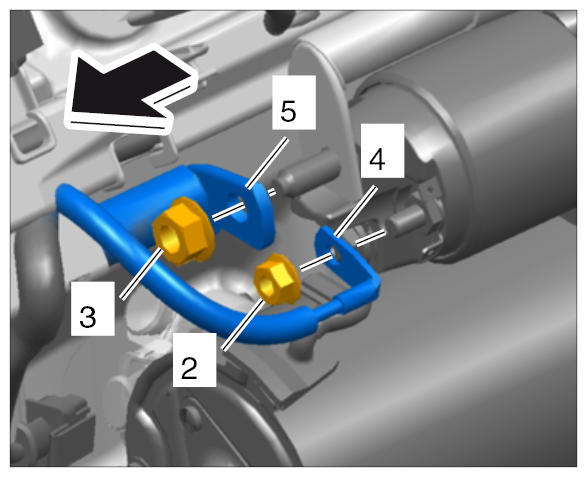

Fig 3: Removing Fastening Nuts On Starter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew the two fastening screws -6- .

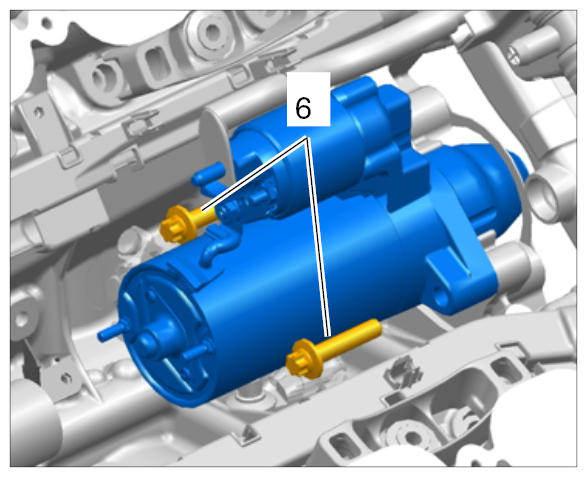

Fig 4: Identifying Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the starter.
1. 4.1. Pull starter -7- towards the front in direction of travel -arrow A- and lift it up -arrow B- .
2. 4.2. Remove line -8- (-arrow C- ).
3. 4.3. Lift the starter -7- up and remove it -arrow D- .

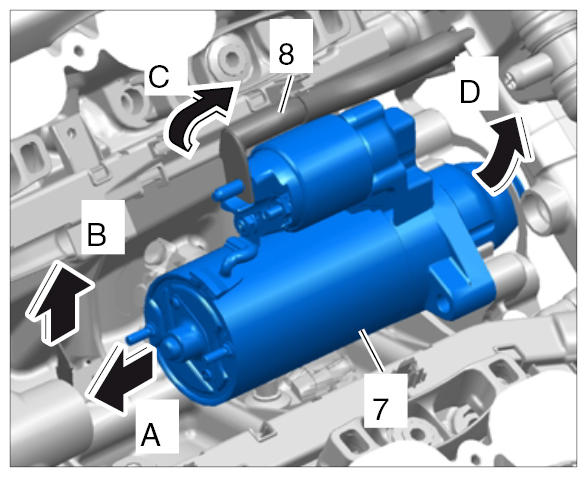

  Fig 5: Removing Starter
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
