Installing Starter

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Install the starter.
1. 1.1. Insert the starter -7- from above -arrow A- .
2. 1.2. Fit line -8- (-arrow B- ).
3. 1.3. Lower the starter -7- (-arrow C- ) and slide it into the engine housing -arrow D- .

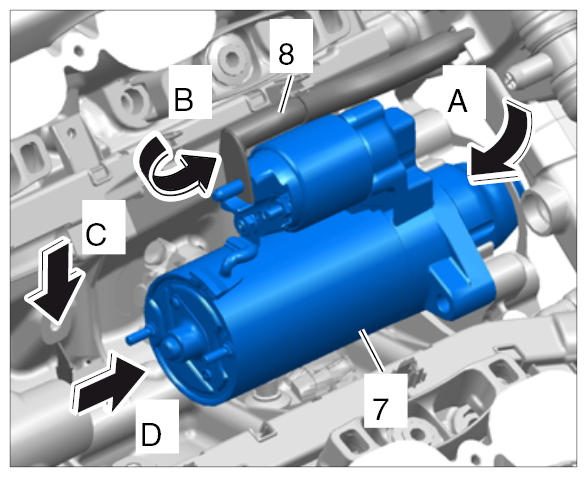

  Fig 1: Installing Starter
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure the starter with the fastening screws -6- and tighten to → Tightening Torque: 45 Nm (33 ft. lb.) +8 Nm (+6 ft. lb.) .

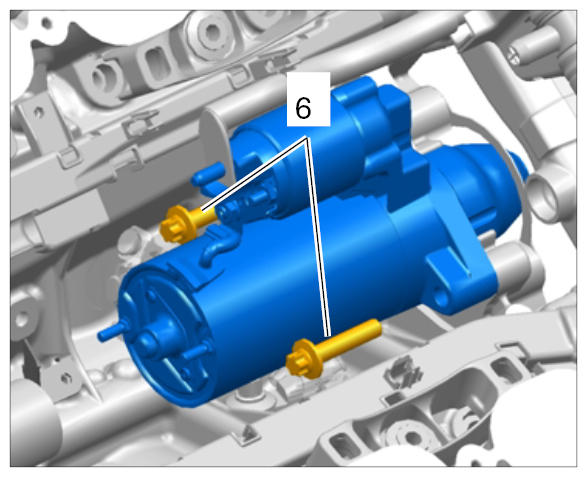

Fig 2: Identifying Starter Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position lines -4 and 5- on the starter -arrow- and secure with the fastening nuts -2 and 3- . → Tightening Torque: 18 Nm (13 ft. lb.) , → Tightening Torque: 6.5 Nm (5 ft. lb.)

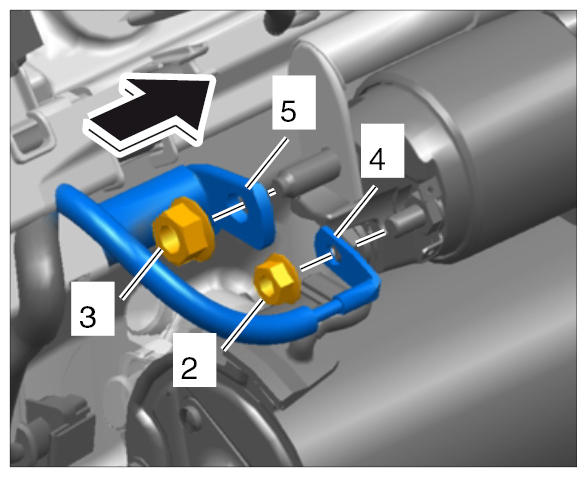

Fig 3: Securing Electric Lines To Starter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push electric change-over valve -1- onto the holder -arrow- .

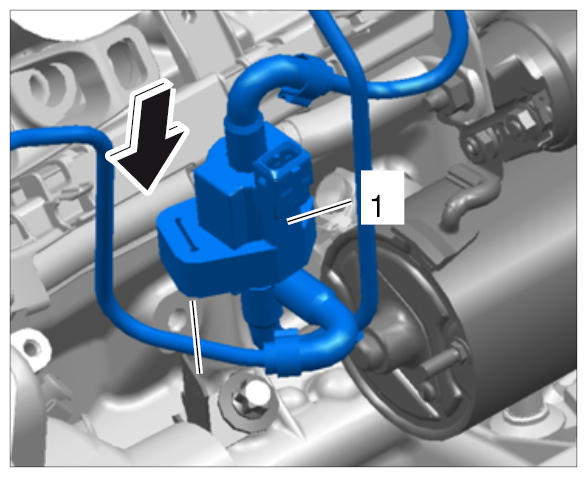

Fig 4: Securing Electric Change-Over Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
