Removing Starter

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

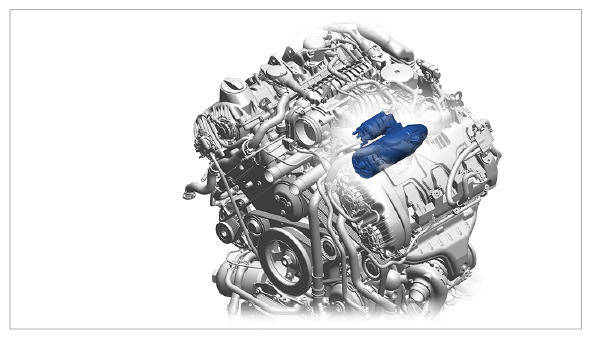

Fig 1: Identifying Installation Position Of Starter

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosen screws on the rear cable guide. → Rear cable guide

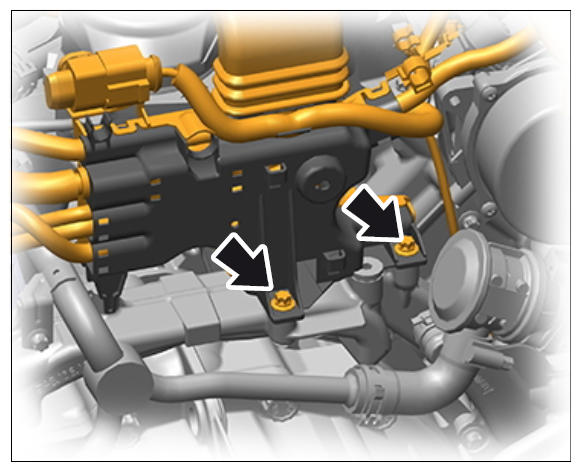

Fig 2: Locating Rear Cable Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw off fastening nuts -1 and 2- on the electric connections at the starter.
Remove electric connections -3 and 4- (-arrow- ).

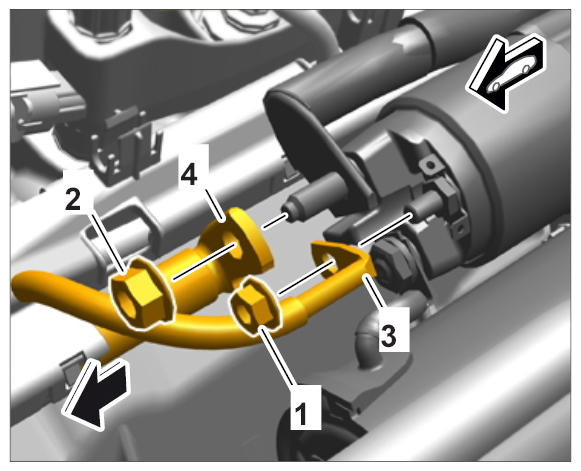

Fig 3: Fastening Nuts On Electric Connections At Starter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew and remove fastening screws -2- on the cable duct.
Disconnect connectors for injectors -1- on cylinder bank 1.

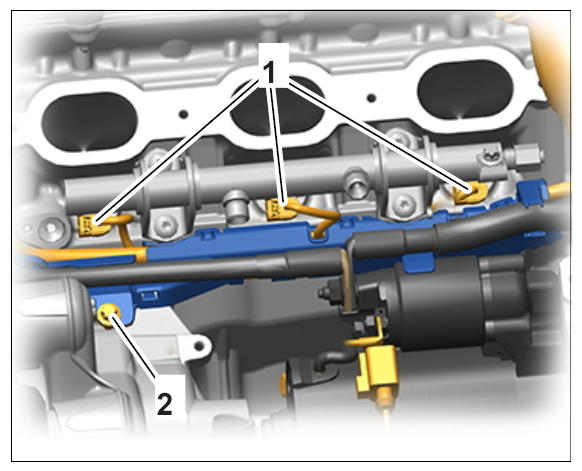

Fig 4: Identifying Cable Duct And Connectors For Injectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

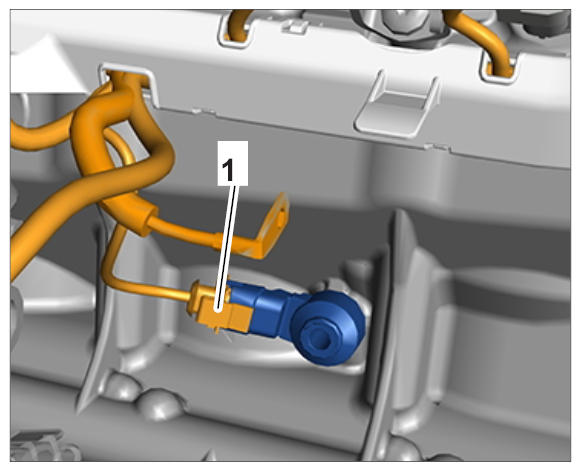

Release connector on the rear knock sensor for cylinder bank 1 -1- and disconnect it.

Fig 5: Identifying Cable Plug For Knock Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully hold the cable duct to one side.
Unscrew and remove fastening screws -1- on the starter.

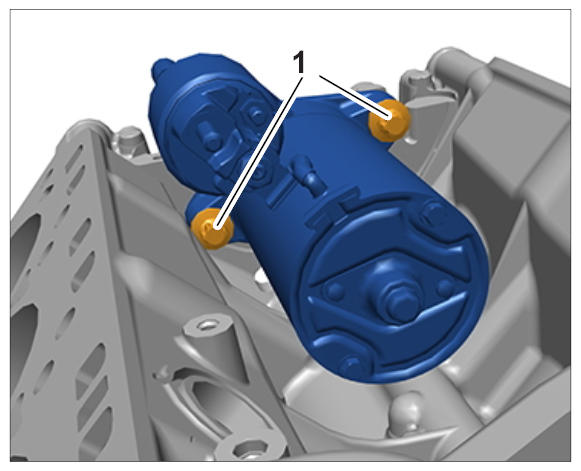

Fig 6: Identifying Starter Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove starter.

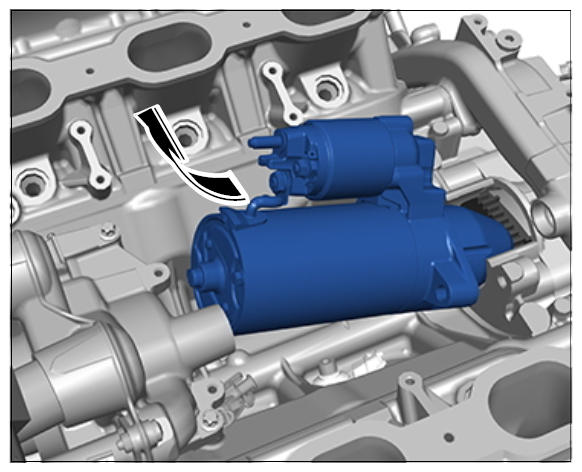

Fig 7: Removing Starter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
